W-Tank - Model Valladolid Plate - Storage and Water Treatment Bolted Tanks
From Modular Tanks in Fiberglass - Plate Models
Bolted storage W-Tank is a light tank, easy to install and thanks to its corrosion-free composition. The plates of storage W-Tank® are manufactured by flex molding process. The Flex Molding process is used to obtain reinforced plastic pieces with high glass fiber content, arranged in the direction of the stress, which leads to high mechanical strength. It consists of injecting a reactive polymer under pressure into the mold which contains the reinforcement in form of fibers, all of which is done in a controlled vacuum environment. This process of impregnation (Flex Molding) is used to build pieces in a closed mold, making it an ecological process by eliminating emissions and consumables.
Product Details

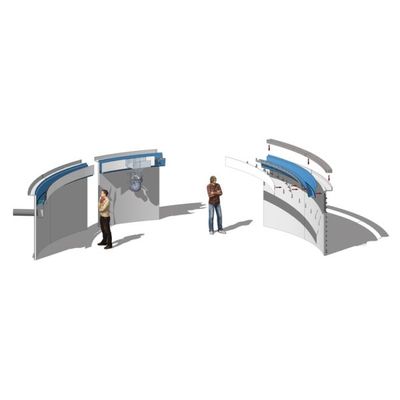

Plate Valladolid:
- It is specifically for settling tanks with a channel to be filled with self-levelling concrete.

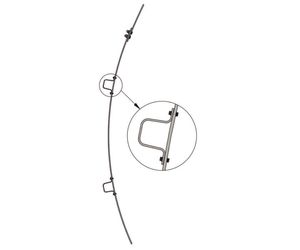

- Included a weir kit to incorporate in the plate Valladolid: canal, Thompson spillway and floating deflector.
- The Valladolid Plate is highly resistant to buckling, thanks to the reinforcement of the isothermal body: which allows to carry the weight of the bridge.
- Clean and hygienic settling tanks, easy to install and maintain.
- Weight of the plate depends on Ø and height. Max weight: 250kg/plate.
Valladolid Plate
- 100% monolithic
- For vertical loads
- Settling tanks
- Allows machining on surface

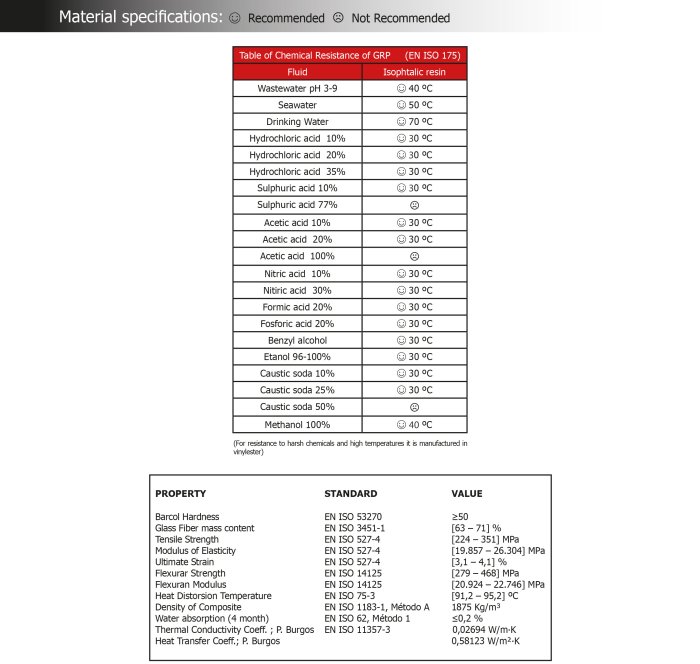

Composition of the plate from inside to outside:
Composition of the plate from inside to outside:
- Chemical barrier achieved with:
- Isophthalic Top Coat, 600 microns (nautical quality). Treated to withstand UVA.
- Glass cap of 1 mm 150 gr/m², special isophthalic resin enrichment in Stratified with high content in high-tensile glass using isophthalic resins.
- Laminated high glass content of high tensile modulus performed on isophthalic resins.
- External chemical barrier: isophthalic Gel Coat 600 microns (nautical quality). Treated to withstand UVA.
The isophthalic resin is authorized for foodstuff applications, such as drinking water for example. Vinylester can be applied on the inside sheet in case of specific liquids or high temperatures.

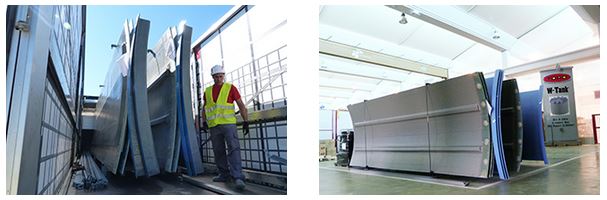

Packaging
- The W-Tank® plates are delivered in metal or wooden boxes, facilitating transportation as a whole.
- The Storage Tanks, Settling Tanks and Covers can be transported in 20-foot and 40-foot marine containers as well as on a conventional truck.
- The easy transportation allows the W-Tank® to be shipped to any part of the world.
Manufacturing
The plates are manufactured using the flex molding process that allows obtaining reinforced plastic pieces with a high content of fiberglass positioned in the direction of stress, thus increasing their mechanical resistance.
This manufacturing process is environmentally friendly because it eliminates emissions and waste.
Aplications

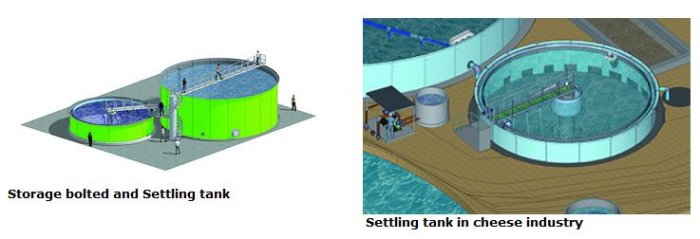

- Storage tank
- Aerobic and anaerobic digesters
- Clarifiers
- Drinking water (NSF certificate)
- Storage of fire water
Colours
W-Tank tanks, decanters and covers are manufactured in the standard color LUMINOUS GRAY RAL7035. As optional in 3 colors, both internally and externally.
Optionally, we can manufacture any color from the RAL chart upon request.
Sectors
- Industrial wastewater
- Urban wastewater
- Drinking water
- Feeding
- Biogas
- Desalination
- Chemical industry
