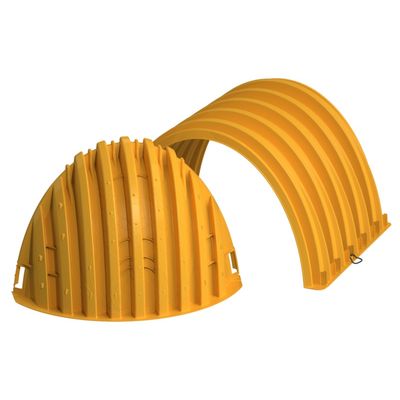

StormTech - Model MC-7200 -Stormwater Chamber and End Cap

Designed to meet the most stringent industry performance standards for superior structural integrity while providing designers with a cost-effective method to save valuable land and protect water resources. The StormTech system is designed primarily to be used under parking lots, thus maximizing land usage for private (commercial) and public applications. StormTech chambers can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.

Chamber Sizing

• Size (L x W x H) 83.4” x 100” x 60” (2120 x 2540 x 1524 mm)
• Chamber Storage 175.9 ft3 (4.98 m3)175.9 f t3 (4.98 m3)
• Min. Installed Storage* 267.3 ft3 (7.56 m3) 267.3 ft3 (7. 5 6 m3)
• Weight Nominal 205 lbs (92.9 kg)
• Shipping 7 chambers/pallet 5 end caps/pallet 6 pallets/truck

Assumes a minimum of 12” (300 mm) of stone above, 9” (230 mm) of stone below chambers, 9” (230 mm) of stone between chambers/end caps and 40% stone porosity.

• Size (L x W x H) 38” x 90” x 61” (965 x 2286 x 1549 mm)
• Chamber Storage 39.5 ft3 (1.12 m3)
• Min. Installed Storage* 115.3 ft3 (3.26 m3)
• Weight Nominal 90.0 lbs (40.8 kg)
• Shipping 7 chambers/pallet 5 end caps/pallet 6 pallets/truck

*Assumes a minimum of 12” (300 mm) of stone above, 9” (230 mm) of stone below, 12” (300 mm) of stone perimeter, 9” (230 mm) of stone between chambers/end caps and 40% stone porosity.
