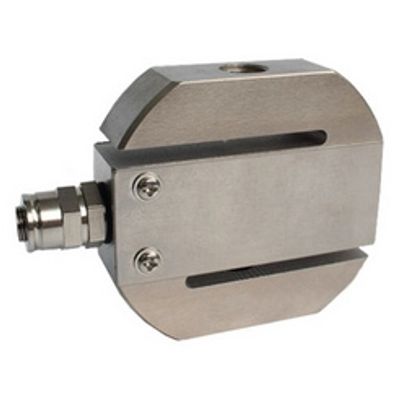

ATO- - Model S-LCS-DYLY-102 -Strain Gauge Load Cell
FromLoad Cells Inc
S type load cell is a tension and compression load cell. There are two thread holes just in both ends of strain gauge load cell for mounting. S type strain gauge load cell 5kg to 7 tonS type load cell is widely used for hopper scale and mechanical scale automation renovation. S type load cell has customizable capacity from 5kg, 30kg, 100kg, 500kg, 1000kg, 2 ton to 7 ton.
Most popular related searches
strain gauge load cell
load cell
tension and compression load cell
strain gauge
compression load cell
compression cell
- Simple and compact structure, small size and light weight
- Strong anti-eccentricity and lateral load capacity
- Good Inherent linearity
- Overload protection
- Shipping weight 1~2kg
- Capacity range 1~500kg, 1~7 ton
- Accuracy 0.03%F.S (linearity + hysteresis + repeatability)
- Sensitivity 1.0-3.0±0.05mV/V
- Creep ±0.03%F.S/30min
- Zero output ±1%F.S
- Temperature effect on zero ±0.03%F.S/10℃
- Temperature effect on output ±0.03%F.S/10℃
- Operating temperature -20℃~+65℃ (-4℉~+149℉)
- Input impedance 350±20Ω
- Output impedance 350±5Ω
- Insulation resistance ≥5000MΩ
- Safety overload 150%F.S
- Bridge voltage DC 5-15V, suggest DC 10V
- Material Alloy steel
- Protection class IP67
- Cable length 2m (＜5ton), 5m (≥5ton)
- Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
