CAE - Strain Gauge Measurement Analysis - Signal Inspector Analyzer
The Signal Inspector Analyzer analyzes strain gauge data and prepares the load case e.g. for strength calculations using the finite element method. The application-oriented and user-friendly interface guarantees fast and error-free operation. Before the analysis the measurement data can be displayed and ranges are selected for further analysis. Result data can be easily exported and used for further calculations.

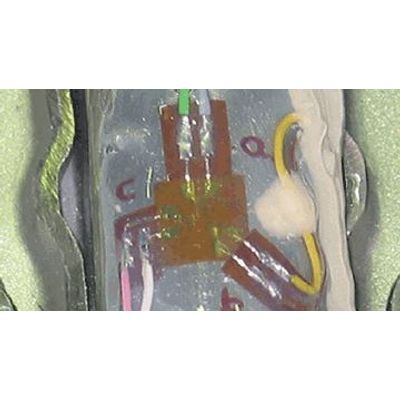

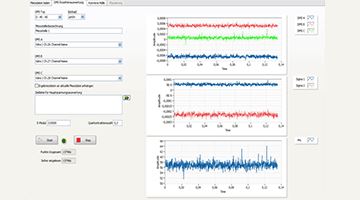

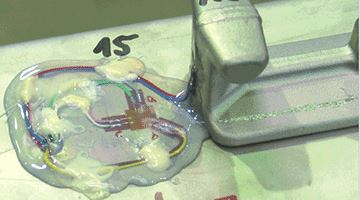

Main tension analysis: Calculation of main tensions and their directions from DMS-rosettes measurement data.
Classification: Classification of load data with Rainflow-method.

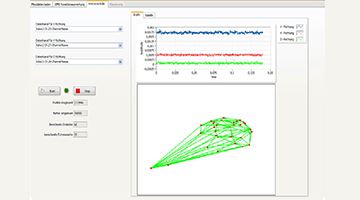

Convex hull: Long three-dimensional load data measurement will be reduced to extreme loading conditions. As a result the relevant load cases can be extracted from big amounts of data and complex loading conditions.
