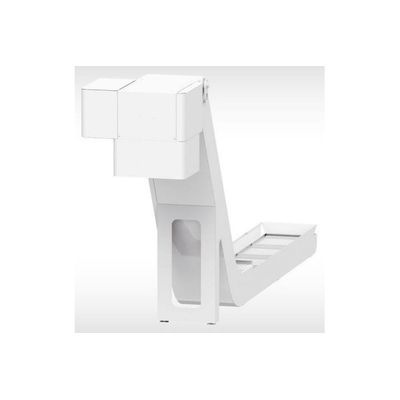

KNOLL - Model S -Strap Hinge Conveyor
KNOLL strap hinge conveyors S are plants for transporting metal chips and small parts. Decentral use on individual and interlinked machine tools. Central use for waste disposal from machine groups and entire production areas. Suitable for long chips, chip balls, and wool chips. Suitable for wet and dry processing.
Most popular related searches
pump station
chip conveyor
waste disposal
conveyor system
process pump
filter cleaning system
filter cleaning
chip separator system
filtering conveyor
safety regulations
- Safety slide coupling
- Simple layout
- Customer-specific design
- Effective overload protection
- Easy to service
- Best-possible addressing of requirements
Main functions
- Collection of the chips/parts
- Transporting of the chips to the discharge point on the upper belt span
Additionally for wet processing
- Collecting of the cooling lubricant
- Separating of chips and cooling lubricant
- Buffering of cooling lubricant
- Transporting of the cooling lubricant for processing, return pumping station or machine
Continuous strap hinge
- 2 roller chain strands that are connected to steel plates
- Positively-driven chain circulation
- Tensioning through easy adjustment of the bearing retainers
Combination possibilities
For other requirements, on request we can combine the conveyor with
- Filter systems for cleaning the cooling lubricant and supplying the machine tool
- Chip reducers for generating pumpable or absorbent chips
- Return pumping stations for transporting chips and cooling lubricant to the central plant
- Extraction stations for transport of chips to the central plant
