StrassburgerFilter - Chamber Filter Press
Filter presses are pressure filters in which a filter pack formed by filter plates and filter frames or chamber plates is arranged in a frame between a “fixed cover” and a “loose cover.” Filter presses are used in the food and beverage industry and in the chemical, pharmaceutical or environmental sector. There they are often used as laboratory filters, wine filters or juice filters.
Most popular related searches
chamber filter press
filter press
chamber press
filter plate
laboratory filter
filter cloth
filter press optimization
laboratory testing system
compressed air
filter element

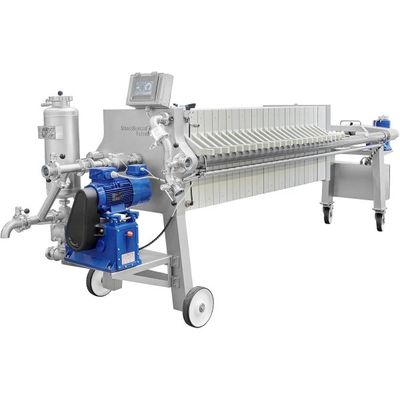

Standard version of the Clean System chamber filter press
- Self-supporting filter frame made of stainless steel
- Optionally equipped with membrane plates or chamber plates made of PP
- Complete with a peristaltic or piston pump for feeding
- Dry-run protection and automatic electrical switching
- Pressure compensation tank and required fittings
- Manual or electrohydraulic contact pressing
- For membrane plates with compressed air connection
We build the optimal filter press for you according to your requirements for the laboratory, technological testing, production or operation. The KFP-C type Clean System features a clean, aseptic, drip-free filter.
- The filter plate has an O-ring edge gasket and the filter pack seals hermetically, eliminating the need for a drip pan.
- The filter cloths are secured inside the plate; here is no need for a rubberized edge often used with push-through cloths.
- The filter remains clean and aseptic on the outside.
- The filter panels are manufactured in 470 x 470 m, 630 x 630 m and 800 x 800 m sizes.
- Membrane plates save 50 percent of the time and provide a higher yield of liquid in the filter cake.
