Streumaster - Model SW 10/16 TA -Binding Agent Spreaders Trailer

• Ideal machine for application in the field of soil stabilization
• Machine for large-area, high capacity spreading of binding agents
• The binding agent is distributed by a big-dimensioned, hydraulically driven spreading auger
• The spreading quantity can be conveniently adjusted by hand or semi-automatically

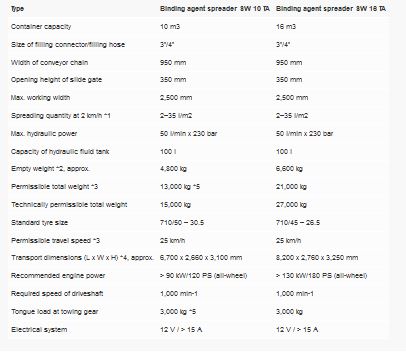

The most important data:

• Container capacity: 10 m³ (single-axle trailer) or 16 m³ (tandem-axle trailer)
• Filling connector: 3” or 4”
• Spreading quantity5 – 35 l/m² at 2 km/h
• Working width: 2.500 mm

• Standard coating  ¦  ¦
• Special coating  ?  ?
• Binder container with internal reinforcement  ¦  ¦
• Lockable side doors  ¦  ¦
• nspection ports with safety switch  ¦  ¦
• Storage compartments  ?  ?
• Loading and lashing lugs  ¦  ¦
• Single-axle chassis with spring-loaded drawbar  ¦  –
• Tandem-axle chassis with spring-loaded drawbar  –  ¦
• Hitch-type drawbar  ¦  ¦
• Rockinger drawbar  ?  –
• Hydraulic support foot  ¦  ¦
• Hydraulic braking system  ¦  ¦
• Dual line air braking system  ?  ?
• Relief cover on the conveyor chains to prevent material building up in the container  ¦  ¦
• Vent pipe and pressure relief flap integrated into the container  ¦  ¦
• 3” pneumatic filling device on both sides  ¦  ¦
• 4” pneumatic filling device on both sides  ?  –
• 4” high-speed pneumatic filling device on both sides  –  ?
• Hydraulic slide gate  ¦  ¦
• Sensor-controlled conveyor chain  ¦  ¦
• Mudguard with mounting parts *4  ?  ?
• Closed on-board hydraulic system  ¦  ¦
• Oil flow control valve  ¦  ¦
• Hydraulic system grouped together in a valve block for easy servicing  ¦  ¦
• Central control electronics in a control cabinet  ¦  ¦
• Speed sensor mounted on the wheels  ¦  ¦
• Control unit  ¦  ¦
• Electronic weighing device *1  ?  ?
• Infinite adjustment of the quantity to be spread  ¦  ¦
• Level indicator “Container full” or “empty”  ¦  ¦
• Auxiliary engine for operation independently of the carrying vehicle or tractor  ?  ?
• Spreading screw with “RotoPlus” dosing device  ¦  ¦
• Working width divided into 2 part-widths  ¦  ¦
• Wide-angle drive shaft with 1-3/8” connection – 6-part  ¦  ¦
• Wide-angle drive shaft with 1-3/4” connection – 6-part  ?  ?
• Wide-angle drive shaft with 1-3/4” connection – 20-part  ?  ?
• Wide-angle drive shaft with 1-3/8” connection – 21-part  ?  ?
• Low-pressure tyres 710/50-30.5  ¦  –
• Low-pressure tyres 710/45-26.5  –  ¦
• Low-pressure tyres 800/45-30.5 *2  ?  –
• Low-pressure tyres 800/40-26.5 *2  –  ?
• Low-pressure tyres 600/60-30.5 *2*4  ?  –
• Standard warranty  ¦  ¦
• Customized warranty  ?  ?
• Dust protection  ¦  ¦
• Access ladder  ¦  ¦
• Bag filter package  ?  ?
• Automatic dust-collecting filter system  ?  ?
• Lighting package with 4 LED working lights  ?  ?
• German TU¨V approval (Technischer U¨berwachungsverein = Technical Inspection Agency) *3  ?  ?
• Collecting pan and digital suspended scales for checking the spread quantity  ¦  ¦
• Safety certificate by the employers liability insurance association  ¦  ¦
• Technical documentation in duplicate  ¦  ¦
