Ref Tek - Model 131B-01/1 &amp; ...

3 -Strong Motion Accelerometer

The 131B-01 Accelerometer uses a Micro-Electro-Mechanical System (MEMS) variable capacitance displacement sensor. Because no coils or magnets are used, the accelerometer is inherently stable over temperature, with excellent reliability, linearity, hysteresis, and noise levels. The 131B-01/3 Tri-axial Accelerometer is best suited to structural applications.

Most popular related searches

strong motion accelerograph

triaxial accelerometer

land geophysics equipment

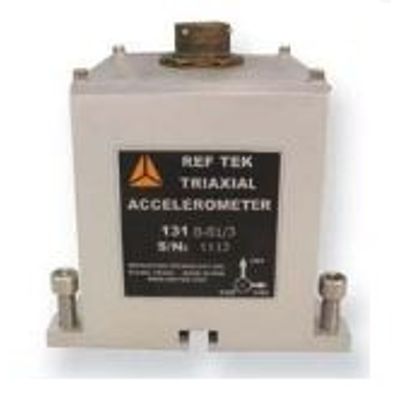

The 131B-01/3 housing is anodized machined aluminium. Mounting is accomplished with a single bolt and 3 point levelling screws. The case is sealed to meet IP67 standards for watertight integrity.

Features:

State-of-the-Art MEMS Accelerometer
Low Noise
Sensitivity and offset stable
Available in uniaxial, triaxial, and borehole models
Suitable for building, bridge and dam monitoring
Compatible with the 130-MC 12 or 18 channel recorder

Technical Specifications:

Full-scale Range: ±4g
Full-scale Output: ±10V; 20VPP
Type: Force balance accelerometer
Self Noise: <2ng2/Hz
Linearity: ±1% of full scale
Sensitivity: ±2.5 V/g
Frequency Response: DC ->500Hz
Damping: 0.6-0.7
Output Impedance -100Q
Self-test Response: Logic level input will produce consistent 0.6g positive output
Lightning Protection: Built-in surge protection
Supply Voltage 10-16VDC
Supply Current: 60mA typical
Triaxial:
Size: 10.2cm x 10.2cm
High: 10.4cm
Weight: 2 kg
