STS Sensor Technik Sirnach AG

- Model ATM - Analog Pressure Transmitter

From

0

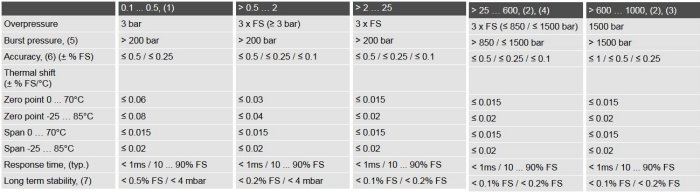

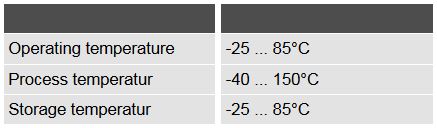

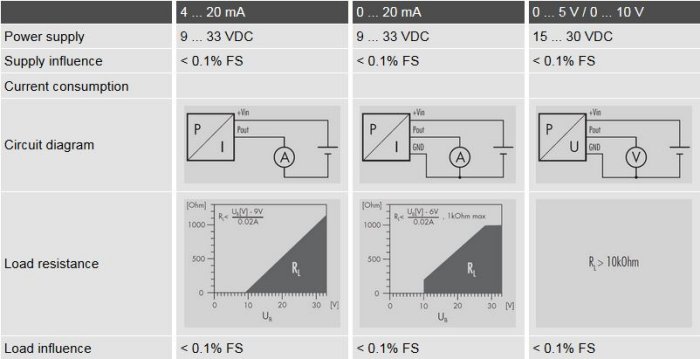

Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA. Process connection: G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M. Materials: Stainless steel, Titanium.

  • Fast customization thanks to configurable product design
  • Demountable electrical connector option to allow adjustment of zero and span setting in the field
  • Compact design requires minimal space
  • Short response time suitable for dynamic pressure measurements
