STS Sensor Technik Sirnach AG

- Model ATM/IS - Analog Pressure Transmitter

From

1

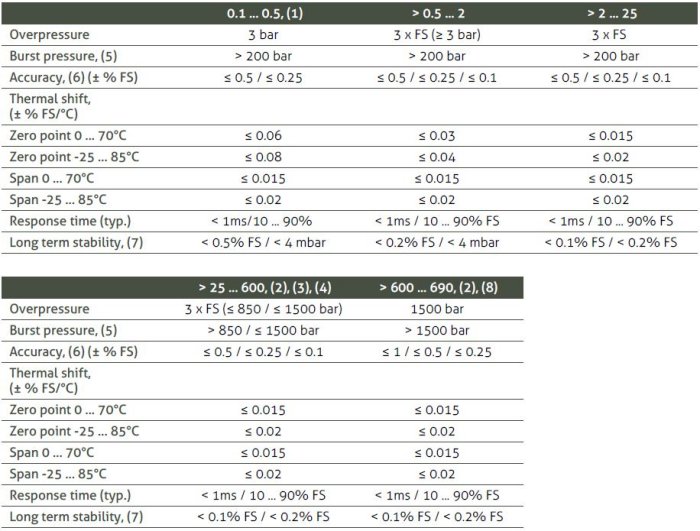

Pressure measuring range: 100 mbar … 690 bar. Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS. Operating temperature: -25 … 85°C. Process temperature: -40 … 150°C. Output signal: 4 … 20 mA. Materials: Stainless steel, Titanium.

  • Certificate: FM & FM-C
  • Fast customization thanks to configurable product design
  • Demountable electrical connector option allow adjustment of zero and span setting
  • Compact design requires minimal space
  • Short response times suitable for dynamic pressure measurements
