STS Sensor Technik Sirnach AG

- Model TM - Passive Pressure Transmitter

From

0

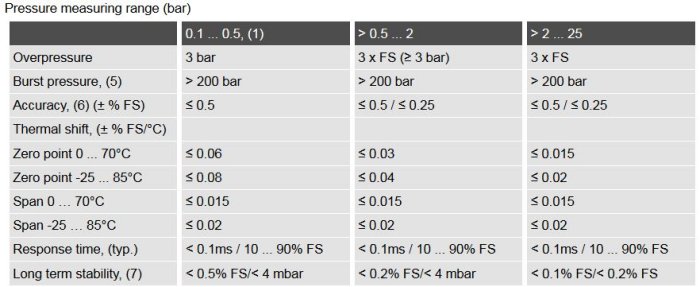

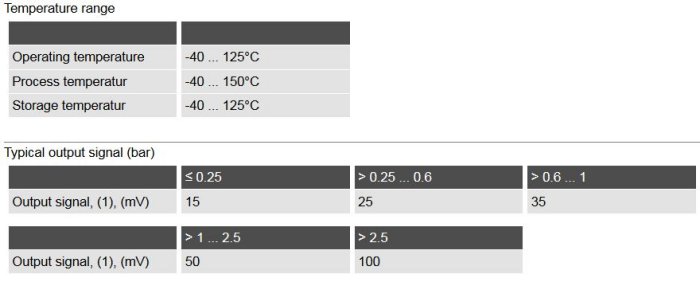

Pressure measuring range: 100 mbar … 1000 bar. Accuracy: ≤ ± 0.50 / 0.25 % FS. Operating temperature: -40 … 125°C. Process temperature: -40 … 150°C. Output signal: mV. Materials: Stainless steel, Titanium.

  • Fast customization thanks to modular product design
  • Demountable electrical connector option allow adjustment of zero and span setting in the field
  • Very short response times suitable for dynamic pressure measurements

Customer reviews

No reviews were found for STS - Model TM - Passive Pressure Transmitter. Be the first to review!
