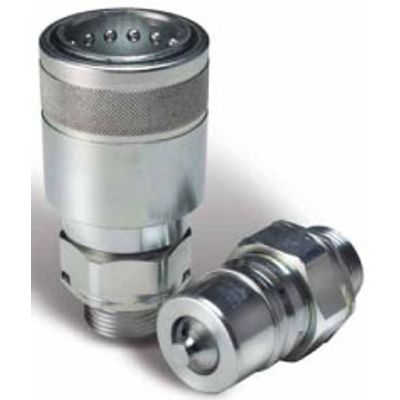

Stucchi - Model I-IP Series -Push Pull Mount Coupling
FromStucchi, Inc.
The I-IP series is an extension of ISO A style couplings, popular worldwide for its versatile interchangeability. This ISO interchange coupler features a push pull mounting feature and a nipple with a modular port design that allows for a range of port options.
Most popular related searches
- Size range: 1/4” thru 1”
- Port options: NPT, SAE, BSP, DIN
- Interchanges with Faster CPV–CPN, Parker 4200
- Working pressure: 25-35 MPa/3571-5076 psi range
- Poppet valve shut-off system
- Push pull mounting feature
- Anywhere quick-release push pull connection is required
- Suitable for flexible hose connection
- Agricultural, mobile construction and industrial plants
- Body Size: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
- Port Options: BSP, DIN, NPT, SAE
- Port Size: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
- Valve Style: Poppet
- Working Pressure: Up to 5000
