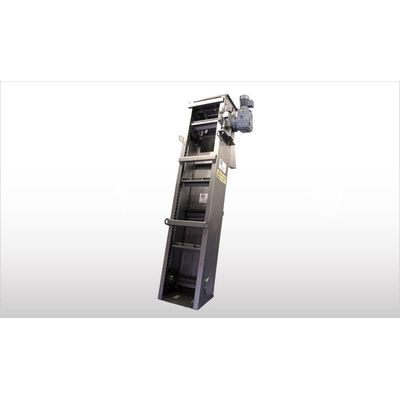

SAVI - Model GVF -Sub-Vertical Mechanical Fine Bar Screens
FromWAMGROUP S.p.A.
GVF Sub-vertical Mechanical Bar Screens are used for medium-fine screening in both municipal and industrial waste water treatment plants. GVF Mechanical Sub-vertical Fine Screens consist of a robust steel frame and a bar filter varying according to the screening efficiency required. GVF screens are used for medium-fine screening of both civil and industrial sewage.
Most popular related searches
mechanical bar screen
industrial wastewater treatment plant
vertical fine screen
fine screen
fine screening
mechanical fine bar screen
industrial wastewater treatment
wastewater treatment plant
bar screen
mechanical vertical bar screen
- Waste water flows into the upstream end of the unit where screenings are captured on the bars.
- While the chain-driven rakes clean the bars, material is conveyed to the discharge point.
- Solids are removed from the rakes by a wiper and discharged into a dumpster, conveyor or compactor.
- 6 ~ 10mm spacing
- 4 or more cleaning rakes depending on screen height
- Channel width: 400 ~ 2,000 mm
- 75-degree incline angle
- Rake tines precision laser-cut from continuous stainless steel bar
- Upper and lower sprocket to maintain strict alignment required by fine bar spacing
- Self-lubricating lower bronze bush enclosed in sealed casing
- Reduced service requirements (no need to take screen out of the channel)
- Alternative screen types and sizes
- Material: hot dip galvanised steel, 304 L / 316 L SS
- Incline angle other than 75 degrees up to 90 degrees with goose neck
- Alternative voltage and frequency
- Alternative degree of motor protection
- Control panel
