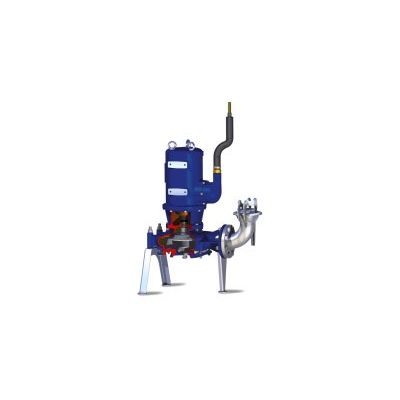

Magnum - Model ESPH/ CSPH -Submersible Motor Pump
Submersible motor pump with adjustable cutting device (CSP). Spiral housing and suction bell made of cast iron. CSPH: Impeller and cutting disc made of chrome steel. ESPH: Impeller made of spheroidal cast GGG60. Pump shaft made of stainless steel with angular ball bearing. Three phase current - submersible motor 4-polar for 400/690v/50hz / ip 68 with 8m cable 12g x 2,5² 1m cable protective tube and strain relief. Sealing on motor end: mechanical seal in oil bath. Sealing on pump end: closed and stainless steel mechanical seal. Motor temperature class h, with triple ptc resistor 180° c, for thermic winding protection. Medium temperature up to 65° c.
- Leakage sensor extends into oil reservoir (additional motor protection )
- Motor and cable strand on junction plate, strand of leak oil sensor and ptc on ceramic clamp interconnected in a terminal box casted in casting compound
- Motor protection guaranteed by the original bauer control system (accessory) with installed thermistor release relay for ptc resistors and overcurrent relay, as well as electronic monitoring system for leakage sensor
FAN pump series impresses with outstanding performance, many fields of application and longevity.
- outstanding cutting performance
- high-quality chrome steel cutting unit
- efficiency class IE2
- temperature monitoring for use in biogas plants
- additional security through leakage sensor (optional)
The pump is most suitable in combination with Bauer Separator Systems, such as the BBU (Bauer Bedding Unit), or with the new small Separator, the Bauer "Compact." Of course this pump is also the perfect fit for conventional slurry management applications.
- agitation and mixing
- rinsing with mixing line
- tanker filling
- pumping
- feeding of the separator
