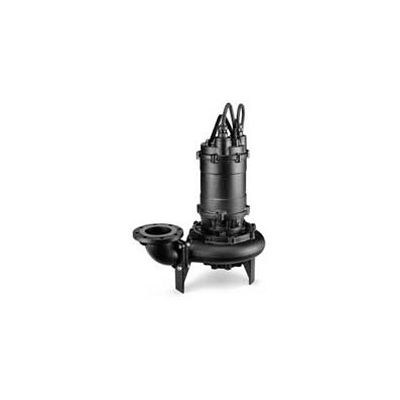

EBARA - Model DMLEU -Submersible Non-clog Single Channel Impeller Sewage Pump
The model DMLEU non-clog, single channel impeller pumps are suitable for use in commercial and industrial wastewater applications and are an economical alternative to other competitive submersible wastewater pumps. The Model DMLEU is constructed of robust cast iron with a large diameter, short overhang shaft and stainless steel fasteners. The single channel impeller has 3” spherical passage and also prevents clogging. An oil lubricated double mechanical seal with lower faces of hard silicon carbide provides strong and reliable shaft sealing providing longer service life.
Most popular related searches
channel impeller sewage pump
impeller pump
submersible wastewater pump
industrial wastewater
wastewater drainage
wastewater pumping
sewage water
wastewater pump
sewage
sewage pump
- Commercial
- Industrial
- Sewage
- Water
- Wastewater
- Drainage (household, industrial)
- Effluent
- Dewatering
- Construction
- Agriculture
- Ponds
- Economical alternative – commercial/industrial use
- Non-clog, single channel impeller – 3″ spherical passage; prevents clogging; high-efficiency and saves energy
- Robust construction – large diameter, short overhang shaft with stainless steel fasteners
- Double mechanical seals – hard faced upper and lower seals operate in an oil bath providing longer service life and lower maintenance costs
- Air-filled, Class F insulated heavy-duty motor – operates cooler with higher efficiencies
- Built-in motor protection with autocut – protects against overheat, out of phase, single phasing and no load
- Stainless steel shaft – high tensile strength and corrosion resistance
- Discharge Size: 3″, 4″, 6″
- Range of HP: 3 to 30 HP
- Capacity: 55 to 1345 GPM
- Head: 12 to 136 Feet
- Max. solid diameter: 3″
- Max. liquid temperature: 104°F (40°C)
- Available in three phase models
