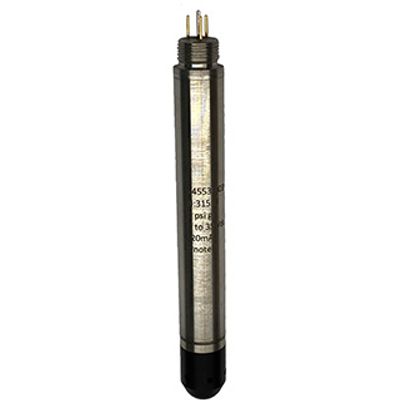

Dynotek Slimline - Model G -Submersible Pressure Transducer
The Dynotek Slimline “G” Submersible Pressure Transducer is a highly reliable and accurate unit designed for long-term submersion in water wells, tanks, cisterns, and flumes. It is a vented gauge configuration, giving immunity from pressure variations due to altitude and atmospheric changes which are read through a vent tube. Slimline is only 0.725 inches in diameter, making it easy to insert into a sounding tube, an access hole in a pump base, or into 1 1/4″ diameter stilling well tubing. Surface mount electronics with the 316 stainless steel or optional titanium body enables minimum sensor size with improved reliability. The vented signal cable results in a depth and level sensor with the highest integrity at low cost. If the sensor fails due to workmanship while under the three-year warranty, a new sensor will be provided and connected to the customer’s cable at no charge, excluding freight.
Product Features-
- Excellent stability
- ± 0.25% FS accuracy
- High integrity and reliability
- Fully welded 316 stainless with one-year corrosion warranty
- Output: 2-wire, 4-20mA
- Standard TPE alloy vented 2 conductor cable with kevlar strength member
Specifications-
- Dimensions- Length: 7.1 inches, outside diameter: 0.69 inches
- Pressure range- 5, 10, 20, 30 and 50 psi gauge (based on gauge pressure 12.7 psi absolute)
- Overpressure- 4 x full scale
- Pressure containment- 6 x full scale up to 2000 psi max
- Material- stainless steel 316L
- Excitation voltage- 9 to 30V d.c.
- Output- 4 mA at 0 psia 20mA at full scale
- Accuracy (NLHR)- ± 0.25% full scale B.S.L.
- Zero offset- ± 0.25% mA FS
- Span setting- ± 0.25% mA FS
- Operating temperature range -5 F to +140 F
- Compensated temperature range- 30 F to 86 F
- RFI/EMC certification- CE approved
- Voltage spike protection- Units will withstand a 600V voltage spike in accordance with BS EN 61000-4-5: 1995 without damage when applied between all excitation lines and case
Cable-
Standard: 0.305 inch diameter with 2 conductors, shield, drain, vent tube 0.30 inch TPE alloy jacket and Kevlar 130 lb min. tensile strength member
