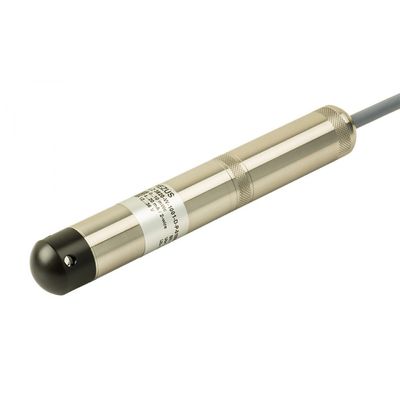

PIEZUS - Model ALZ 3820 -Submersible pressure transmitter with detachable probe
FromPIEZUS LLC
ALZ 3820 is a general purpose submersible hydrostatic level transmitter with detachable probe, allowing quick and easy removal for service or replacement. High quality silicon piezoresistive sensor, robust stainless steel housing and a hydrometric cable with the ventilation tube make APZ 3820 a reliable solution for a wide variety of industrial level measurement applications.Most popular related searches
Pt100 temperature sensor
hydrostatic level transmitter
submersible pressure transmitter
level monitoring
temperature sensor
hydrostatic level
level transmitter
pressure transmitter
submersible level transmitter
silicon sensor
Ranges: 1 mH2O up to 250 mH2O
Basic accuracy: ±0.25%
Probe: Ø27 mm, AISI 316L, detachable from the cable for easy service
Outputs: 4...20 mA; 0...20 mA; 0...10 V; 0...5 V; RS-485/Modbus RTU
Sensor: silicon piezoresistive
Media temperatures: -20…+70 °C
Optional: Ex ia, HART, Pt100 temperature sensor
Water, wastewater
Fuels, oils
Tanks, wells
Pump protection
