BD|SensorsModel LMK 458 -Submersible Probe

SHARE

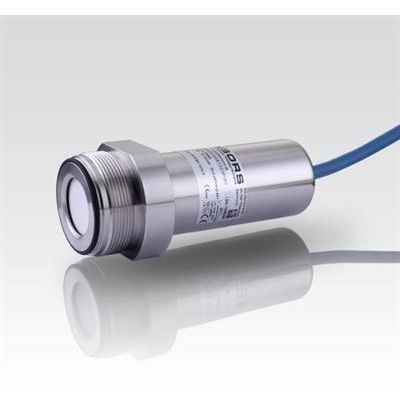

The hydrostatic probe LMK 458 has been developed for measuring level in service and storage tanks and is as a consequence certificated for shipbuilding and offshore applications. A permissible operating temperature of up to 125 °C and the possibility to use the device in intrinsic safe areas enable to measure the pressure of various fluids under extreme conditions. The basis for the LMK 458 is a capacitive ceramic sensor element designed by BD|SENSORS, which offers a high overload resistance and medium compatibility.

Most popular related searches
  • nominal pressure: 0 ... 40 cmH2O up to 0 ... 200 mH2O
  • accuracy: 0,1 % / 0.25 % / 0.35 % FSO
  • diameter 39.5 mm
  • high overpressure capability
  • high long term stability
  • permissible temperatures up to 125 °C
  • shipping approvals GL (Germanischer Lloyd), DNV (Det Norske Veritas), CCS (China Classification Society)
  • IS-version zone 0
  • diaphragm pure ceramic (99,9% AI2O3)
  • different housing materials
  • (stainless steel, CuNiFe)
  • screw-in and flange version
  • accessoires e.g. assembling and probe flange, mounting clamp
  • marine and shipbuilding
