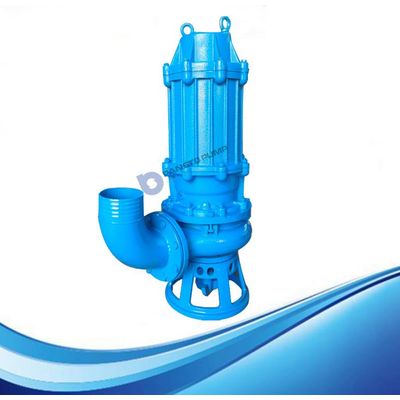

Pansto - Model ZJQ Series -Submersible Slurry Pumps

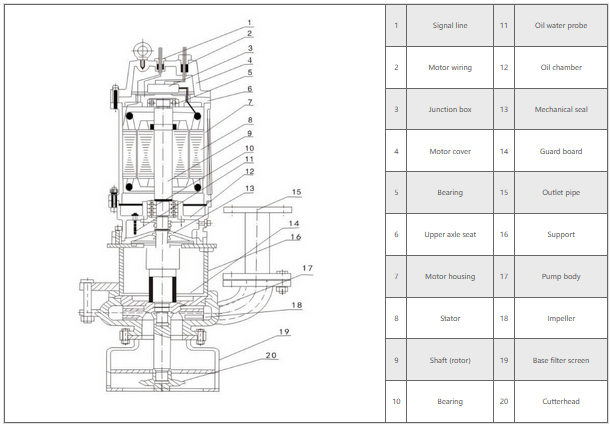

ZJQ?NSQ submersible slurry pump. Sand suction pump is composed of motor and pump, which are separated by oil.Separation from the chamber and mechanical seal assembly is an electromechanical one-body product. The motor and pump share the same shaft (rotor).Three pumps are short in length and compact in structure Equipped with various protection devices to make the pump run safely and reliably. It is safe and reliable to operate with Y series national standard motor F grade insulation. Adopting double-channel series seal and selecting new alloy material, it has the characteristics of reliable sealing and long wear-resistant life. The over-flow parts are made of high chromium slurry pump with good wear resistance and excellent over-flow performance, which is of the same kind in China 2-10 times of the service life of type I pump
- Adopting advanced technology, the sludge discharge ability is strong, and it can effectively pass through solid particles with a diameter of φ 30 ~ φ 60 mm without blockage.
- The tearing mechanism can tear and cut fibrous substances and then discharge them smoothly without adding a filter screen on the pump.
- Reasonable design, small motor power and remarkable energy saving effect.
- The mechanical seal made of the latest materials can make the pump run safely and continuously.
- Compact structure, convenient installation, simple engineering cost, no need to build pump house.
- Can be used in full lift range to ensure motor overload.
