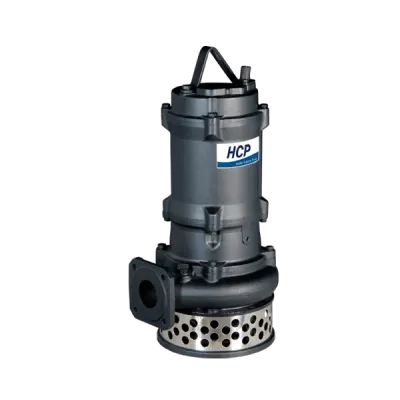

HCP - Model AL Series - Submersible Wastewater / Effluent Pumps
The AL Series by HCP comprises rugged cast iron submersible pumps designed for handling wastewater and effluent with a high solids epoxy coating and offering exceptional performance and reliability. These pumps feature a 5~15HP motor with a unique triangular handle for easy installation and transportation in guide rail systems. Designed for compact spaces, they offer high head and optimal efficiency across a broad range of applications. Notably, the oil elevation disk within the oil chamber helps maintain lubrication of the mechanical seals, significantly extending pump life. Additional functionalities include an Auto-cut protector, dual mechanical seals with a lip seal design, and a robust epoxy treatment on the cable base.Most popular related searches
cast iron submersible pump
cast iron submersible pumps
wastewater effluent
submersible pump
epoxy coating
water extraction
rainwater drainage
pump system
lake water
flood water
- Casted iron body pump with 100~150μm high solids epoxy coating offering the highest quality and performance.
- 5~15HP Triangular handle design for easy handling on Guide Rail System.
- Compact, high head, and high efficiency for wide range of use.
- Oil Elevation Disk design in the oil chamber to ensure the mechanical seals lubrication and to extend the service life of pump.
- Equipped with Auto-cut Protector, epoxy cable base treatment, double mechanical seals and lip seal design.
- All industry wastewater.
- Building rainwater drainage, flood water removal.
- River / lake water extraction.
- Landscaping, aquaculture and agriculture irrigation.
