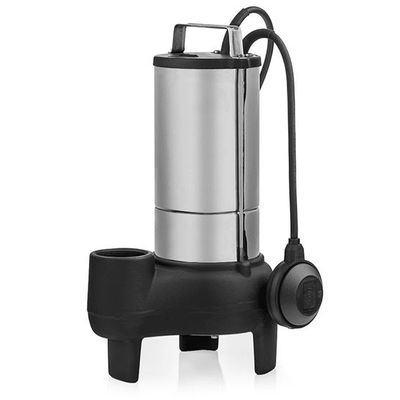

OLIJU - Model Vortex N -Submersible Wastewater Pump (Vertical Outlet)
Vortex N series pumps are suitable for pumping drainage water and waste water. With 30 up to 50 mm spherical clearance. They are used for various applications in public and private sector, trade and industry.
Permanent or transportable. Model with float switch control for automatic pump operation, depending on liquid level in the sump.
Double seals, lip seals and reinforced carbon ceramic mechanical seal. Motor casing in stainless steel, 304 stainless steel or cast iron open impeller, pump body in cast iron, 420 stainless steel shaft
Clear water and drainage water, sewage containing soft solids. Max. liquid temperature: 35°C.
Fully submersible, pressure tight electric motor. Stainless steel motor- and pump housing. Insulation class F. Motor protection IP 68. Thermal sensors imbedded in the motor winding.
- Power cable: 10 m neoprene.
- Immersion depth of 10 m.
