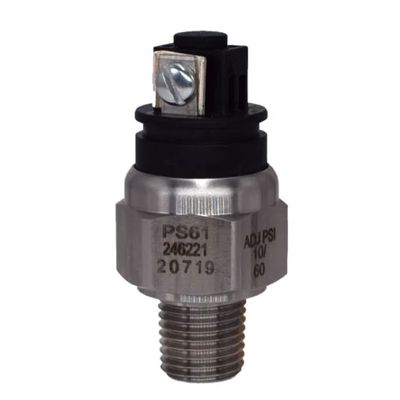

Gems Sensors & Controls - Model PS61 - Subminiature Pressure Switch with Enhanced Ingress Protection
The Gems Sensors & Controls PS61 Subminiature Pressure Switch is an engineered solution tailored for original equipment manufacturer (OEM) applications. This pressure switch is notable for its enhanced ingress protection, with ratings of IPX7, IPX9K, and IP6KX, ensuring resilience against water and dust ingress. It can withstand temperatures up to 250°F (121°C), making it suitable for challenging environments. Designed with high proof pressure capabilities, the PS61 is ideal for demanding hydraulic applications such as forklifts, scissor lifts, and off-road equipment. Its compact design allows integration into systems where space is at a premium, while its durable construction provides reliable performance in rigorous conditions. This switch is part of a broader range of products that offer adjustable settings and enhanced functionality for complex industrial systems.
Gems Sensors & Controls’ PS61 Subminiature Pressure Switch family is designed for OEM applications. It is available with enhanced ingress protection (IP) to IPX7, IPX9K, and IP6KX and integral electrical connections and can withstand temperatures up to 250°F (121°C).The PS61 compact pressure switch has been designed with the OEM in mind and is equipped with high proof pressure capabilities for demanding hydraulic applications such as forklifts, scissor lifts, and off road equipment.
- 10 to 4,350 psi (0.7 to 300 bar)
- Adjustable or Factory Set
- Perfect for Demanding OHV Applications
- Adjustment Ranges : 10-60 psi (0.7- 4.1 bar) to 2970-4350 psi (205-300 bar)
- Switch rating : 100 VA Max ; 42V max voltage
- Diaphragm : Nitrile (Standard), EPDM, Viton ® or Neoprene
- Fitting : Zinc Plated Steel (standard) or 316 Stainless steel (option)
- Proof pressure : Diaphragm - 6000 psi (414 bar) ; Piston - 7000 (483 bar)
