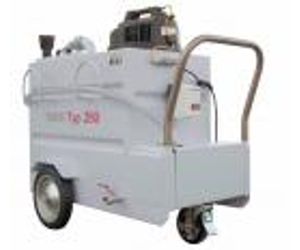

MKR - Model SF 250 -Suction and Filter Cart
Specific Characteristics: Capacity 250 liters, Filtration by Nylon Filter Insert 150 µm, Throughput 120 l/min, Compact Design, Working Voltage 230 V.
- Perfect emulsion treatment for individually filled machines
- Change of emulsion as fast as possible
- Useable for emulsions and cutting oils

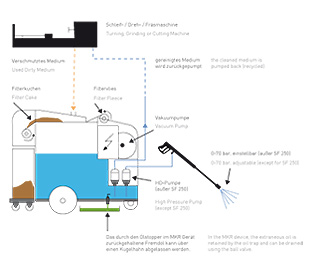

- 3 Functions in one device:
- Suction of the entire liquid, as well as the swarf and grinding slurry
- Filtration of the liquid
- Cleaning the inside of machines and containers
Options
- Stainless Steel Basket 200 µm
- Custom Colour
Housing
- Weldment of 3mm sheet steel
- Out- and Inside coat of lacquer 2-K-lacquer (NCS-S 2010-R70B)
Evacuation pump
- 230 Volt 50 Hz
- Power 60 l/min at 1 bar
Hoses
- Suction hose, length 3m, Ø 50 mm
- Recirculating hose - cleaned medium,
- Length 4 m, Ø 20 mm, type Armorvin - HNA
Suction-accessories
- Suction-pipe Ø 50 mm, 800 mm long
- Flat-nozzle 100 mm wide, for suction-pipe Ø 50 mm
- Bushing from Ø 50 to Ø 36 mm
- Extension piece Ø 36 mm
- Crevice nozzle
- Soil nozzle 400 mm wide with adjustable rollers
Filter insert : 150 μm
Documentation : Instruction sheet, wiring diagram

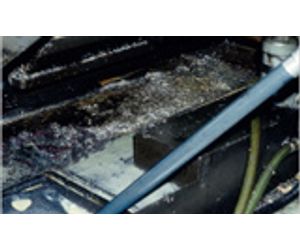

Suction:
Use the suction spout to safely remove dirty coolants, chips and swarf. The high-power pump delivers sufficient suction to cut the cleaning times for the machine and emulsions to a minimum.
Filtration:
Using vacuum filtration, chips and swarf up to a size of 80 µm are reliably removed from emulsions.

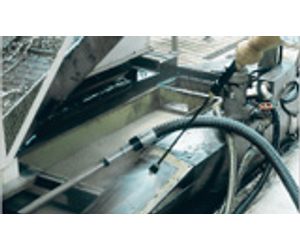

Pneumatic Lance:
The high pressure of the pneumatic lance will purge even the most stubborn sediments and oily residues from every last nook and cranny inside your machines.

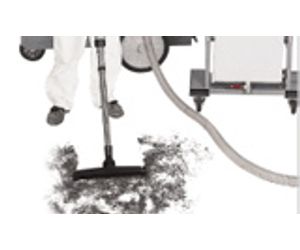

Chip and Swarf Disposal:
The disposal unit retains the filtered out metal particles. Use it separately as a fully functional industrial vacuum cleaner.
