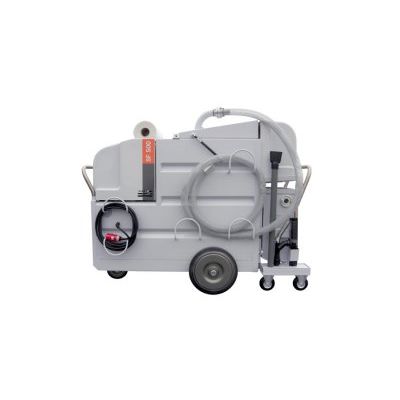

MKR - Model SF 500 -Suction and Filter Cart
Specific Characteristics: Capacity 500 liters, Filtration by Filter Fleece, Throughput 250 l/min, High Pressure Cleaning System, (either fresh water or emulsion), ´Mechanical “Tramp Oil Stopper”.
- Perfect emulsion treatment for individually filled machines
- Change of emulsion as fast as possible
- Useable for emulsions and cutting oils
- 4 Functions in one device:
- Withdrawal of the entire content by suction
- Filtration of the liquid
- Cleaning of the containers for the emulsion and the interior of the machine with the high pressure cleaning system
- Suctioning off the swarf and grinding slurry
- Cleaning Opening at the rear 420x150 mm
- Wheel-Set for extremely uneven ways
- Trailer draw bar
- Electrical Actuation with battery and charger
- Special Cleaning Hose
- Custom Colour
Housing
- Compact-construction with self-supporting solid welded structure of 3 mm sheet steel
- Out-and Inside coat of lacquer 2-K-lacquer (NCS-S 2010-R70B)
Suction hose
Length 4,5 m, Ø 50 mm, suction tube 0,8 m, flat nozzle 100 mm wide
Nozzle set
Reducer Ø 36 mm, extension tube Ø 36 mm length 440 mm, floor nozzle 400 mm wide, crevice nozzle
Cleaning system
High pressure pump for cleaning of the emulsion tank
400 V – 2,6 kW
8 m HD-hose, infinitely adjustable lance nozzle
0-70 bar
Evacuation
Centrifugal pump, 400 V – 0,55 kW
Evacuation hose
Length 5 m, Ø 25mm with ball cock at the end of the hose
Vacuum-belt-filter
For the desposition of swarfs and particles
Fleece-Length 100 m
Swarf chute complete
Useable as an independent industrial exhauster 3 m connection hose to the main-unit with to 2 C - couplers
Supply point
16-A-cekon-connector with 10 m current cable 5-pole integrated phase inverter
Options
Trailer draw bar
(The complete-length increases by 250 mm.)

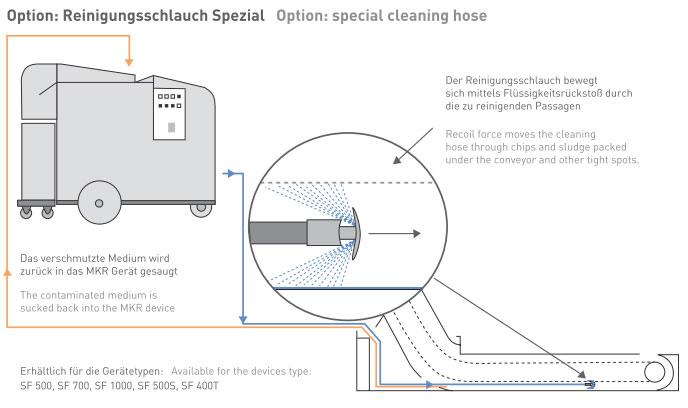

Cleaning hose special
Length 4 m
(For difficulty-accessible places, which one can not be reached with the rigid lance, for example under the swarf chute.)
Cleaning opening at the rear
Dimensions: 420 x 150 mm
(We recommend this cleaning opening for the unproblematic
cleaning of the unit.)
Cleaning door at the rear
Breadth: breadth of the tank, height: 500 mm
(We recommend this cleaning door for the unproblematic cleaning of the unit.
Wheel-set for extremely uneven ways
Electrical actuation with battery and battery charger
(The Unit becomes longer around 378 mm, the weight increases by 165 kg.)
Documentation
- Instruction sheet
- Spare part list
- Wiring diagram
Suction:
Use the suction spout to safely remove dirty coolants, chips and swarf. The high-power pump delivers sufficient suction to cut the cleaning times for the machine and emulsions to a minimum.
Filtration:
Using vacuum filtration, chips and swarf up to a size of 80 µm are reliably removed from emulsions.
Pneumatic Lance:
The high pressure of the pneumatic lance will purge even the most stubborn sediments and oily residues from every last nook and cranny inside your machines.
Chip and Swarf Disposal:
The disposal unit retains the filtered out metal particles. Use it separately as a fully functional industrial vacuum cleaner.
