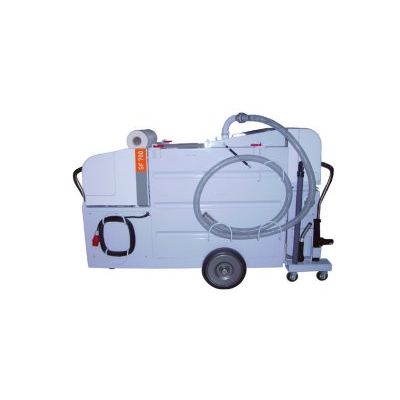

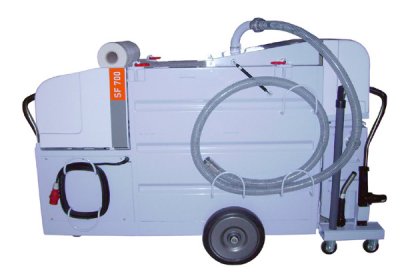

MKR - Model SF 700 -Suction and Filter Cart
Specific Characteristics: Capacity 700 liters, Filtration by Filter Fleece, Throughput 320 l/min, High Pressure Cleaning System, (either fresh water or emulsion), Mechanical “Tramp Oil Stopper”.
- Perfect emulsion treatment for individually filled machines
- Change of emulsion as fast as possible
- Useable for emulsions and cutting oils
- 4 Functions in one device:
- Withdrawal of the entire content by suction
- Filtration of the liquid
- Cleaning of the containers for the emulsion and the interior of the machine with the high pressure cleaning system
- Suctioning off the swarf and grinding slurry
- Cleaning Opening at the rear 420x150 mm
- Cleaning Door at the rear
- Wheel-Set for extremely uneven ways
- Trailer draw bar
- Electrical Actuation with battery and charger
- Special Cleaning Hose
- Custom Colour
Housing
Compact construction with self-supporting Solid-weldingconstruction of 3 mm steel sheet
Outside- and inside double coating, 2-K-varnish (NCS-S 2010-R70B)
Suction hose
Length 4,5 m, Ø 50 mm, suction hose 0,8 m, flat nozzle 100 mm wide
Nozzle-set
Reducer Ø 36 mm, extension piece Ø 36 mm, length 440 mm, floor nozzle 400 mm wide, crevice nozzle
Cleaning system
High pressure pump for cleaning of the emulsion tank 400 V - 2,6 kW 8 m HP-hose, continuously adjustable lance nozzle 0-70 bar
Evacuation
Centrifugal pump, 400 V – 0,55 kW
Evacuation hose
Length 5 m, Ø 32 mm, with ball cock at the hose-end
Vacuum belt filter
To the separation of splinters and particles
Fleece-length 100 m
Swarf chute complete
Useable as an independent industrial exhauster 3 m connection hose to the main-unit with to 2 C - couplers
Electrical connection
16-A-Cekon-connector with 10 m current cable 5-pin integrated phase inverter
Options
Drawbar
(The whole length increases by 250 mm.)

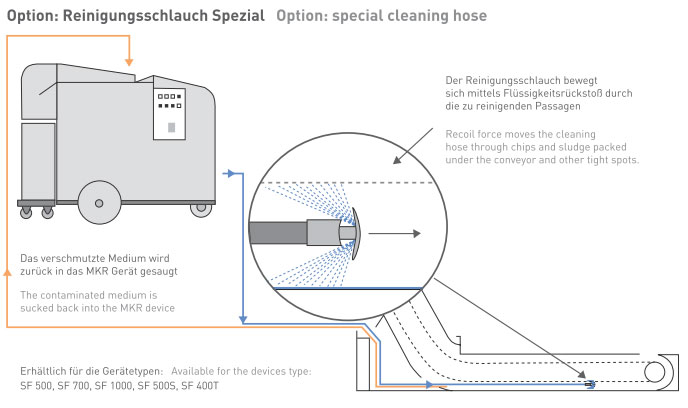

Cleaning hose special
Length 4 m
(For to heavy accessible places, which can not reached with the rigid lance, e.g. under the swarf absorber.
Cleaning opening at the rear
Dimensions 420 x 150 mm
(We recommend this cleaning opening for the unproblematic cleaning of the system)
Cleaning door at the rear
Breadth: Tank-breadth, height: 500 mm
(We recommend this cleaning opening for the unproblematic cleaning of the system)
Wheel set for extremely uneven ways

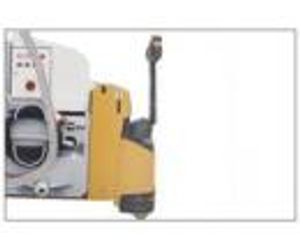

Electric drive with battery and battery charger
(The system become longer by 378 mm, the weight increases round 165 kg.
Documentation
- Operation manual
- Parts-catalog
- Wiring diagram
Suction:
Use the suction spout to safely remove dirty coolants, chips and swarf. The high-power pump delivers sufficient suction to cut the cleaning times for the machine and emulsions to a minimum.
Filtration:
Using vacuum filtration, chips and swarf up to a size of 80 µm are reliably removed from emulsions.
Pneumatic Lance:
The high pressure of the pneumatic lance will purge even the most stubborn sediments and oily residues from every last nook and cranny inside your machines.
Chip and Swarf Disposal:
The disposal unit retains the filtered out metal particles. Use it separately as a fully functional industrial vacuum cleaner.
