Clemco Industries Corporation

ZEROModel BNP 220 -Suction Blast Cabinet

SHARE

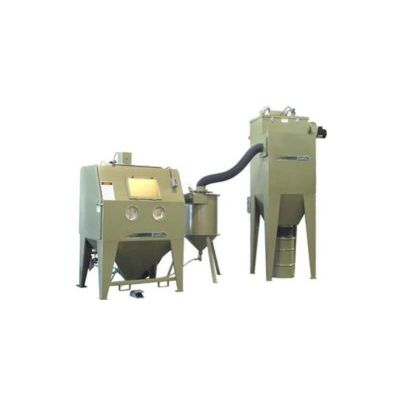

BNP blast cabinets deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. The BNP 220`s larger enclosure (50 by 39 by 43 inches tall) accepts powered turntables, ZERO`s A-300 Automation Kit, and other Option Plus modifications. Shown with 900 CFM reclaimer (free standing) and RPH dust collector.

Most popular related searches

BNP 220 Cabinets Feature:
Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Ceiling-mounted, two-tube fluorescent light fixture with abrasive resistant Lexan® cover for extraordinary visibility.
  • Safety interlocks interrupt blasting if either door isopened. (Conforms to US regulations.)
  • Adjustable, heavy-duty chromed latches seal doors tight through years of service.

Productivity

  • Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun.
  • Double-wall, sound-insulated doors, with industrial quality lift-off hinges.
  • 14-gauge steel all-welded construction, with precisely formed bends, forms a rigid, long-lasting cabinet shell.

Convenience

  • Tilt-out window, for tool-free glass changes in minutes.
  • Pressure regulator, gauge, and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.

Common Applications

  • Remove rust, mill scale, heat scale, and carbon buildup from metals
  • Strip paint, powder coating, plating, and anodizing from parts for rework
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
  • Extract residual sand from castings
  • Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials
  • Clean release agents and material buildup from molds
