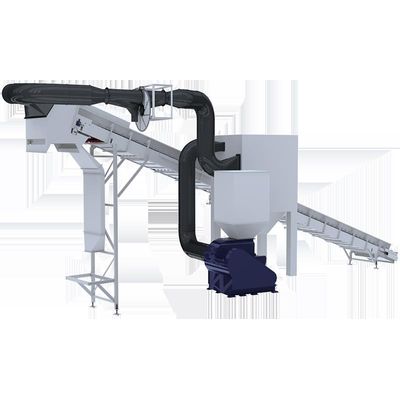

Bianna - Model SS7.5 -Suction System
FromBianna Recycling
Hopper fitted with adjustable deflectors for the right air ducting, Adjustable blow nozzles, Alveolar valve for the suction film decantation and air separation, Sleeve felter for the dust elimination, Impulsion and suction fans, Galvanised steel pipelines transportation system. We also offer customised solutions for each project, searching for a great plastic film separation and low investment costs.
Most popular related searches
sleeve filter
air separator
air duct
rotary valve
air separation
filter sleeve
decantation
decanter
plastic separation
clean air
- Separation performance increase compared to manual systems.
- Low operation and maintenance costs.
- Cleaning access in all the critical points including pipelines transportation.
- Suction, transportation, decantation and cleaning of the air, all in the same system.
- Capacity: to 7.500 m3/h
- Rotary valve: MO120
- Impulsion fan : 1500 rpm, 10.500 m3/h, 1.5 kW
- Sleeves filter: 24 sleeves
- Suction fan: 3000 rpm, 7.500 m3/h, 11 kW
- Compressor: 0.8 m3/min, 7.5 bar
