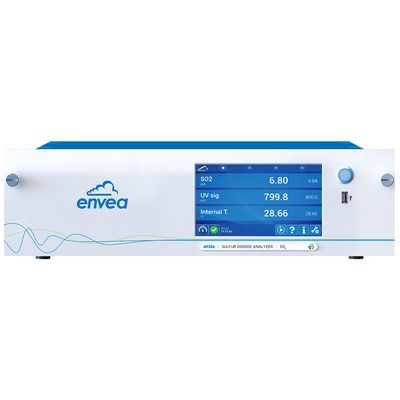

ENVEA - Model AF22e e-Series -Sulfur Dioxide Analyzer SO2
FromENVEA
UV Fluorescence gas monitor offering excellent performances for the monitoring of SO2 in the range 0-10 ppm or 0-1 ppm. Eco-designed, reference air quality monitor, QAL1 certified by the TÜV, US-EPA approved. Utilizes the standard method for the measurement of sulfur dioxides(EN 14212). With its ultra low power consumption & 24 V supply (option), the AF22e is the sole SO2 monitor on the market able to measure without being connected to the power grid.
Most popular related searches
industrial fence line monitoring
air quality monitoring
measurement of sulfur dioxide
ambient air quality monitoring
SO2
fence line monitoring
2008/50/EC
continuous emissions monitoring system
ambient air quality
continuous emissions monitoring
- Superior metrological performances for SO2 measurements in ranges 0-10 ppm or 0-1 ppm
- Innovative conception of the optical module for excellent sensitivity and signal stability
- Real-time calibration graph, animated synoptic, auto-diagnostic, control and maintenance data screens can be displayed while the instrument is operating
- Embedded Communication Protocol for XR® Software with automatic recognition and configuration
- Able to withstand temperatures up to 45-50 °C without air conditioning
- Special architecture means that no additional pump is necessary in case of permeation bench (in option)
- Automatic recognition of plugged electronic boards or optional devices: plug & play principle
- Smart, connected instrument with embedded web server for the easiest, full remote control and operation of the analyzer from any PC, tablet or smartphone (configuration, calibration, test, diagnostic parameters…)
- Integrated web-server with full remote emulation of the analyzer through the ENVEA Connect free app
- Continuous indoor and outdoor air quality monitoring
- Stationary and mobile AQMS laboratories
- Industrial fence-line monitoring
- Continuous emissions monitoring (CEM) by dilution
- Laboratory & field studies on SO2/H2S/TRS effects…
- Background (urban or suburban) Rural, Traffic, Kerbside measurement campaigns and monitoring studies
- Measured parameter: SO2
- Technology: UV Fluorescense
- US-EPA Approval / QAL 1 Certification: YES
- Measurement ranges: 0-1 ppm or 0-10 ppm user-defined
- Measurement units: ppb, ppm, µg/m3 user-defined
- Lower Detectable Limit (2σ): < 0.4 ppb
- Noise (σ): < 0.2 ppb
- Zero drift: < 1 ppb / 24h
- Span drift: < 0,5% / 7 days
- Linearity: ± 1%
- Sample flow rate: 20L/h
- Sample pump: internal
- Temperature range: 0°C to +35°C
- Data storage: 1 year
- Included I/O: 1LAN/3USB/WIFI/2DRY
- Weight (Kg): 9,8
- Dimensions mm (LxWxH): 483 x 606 x 133
- Case: 19″ Rack, 3U
- Power supply: ‘100~250Vac, 50/60Hz + ground
- Pressure and temperature compensation: YES
Main Options:
- TFT color touch screen (800 x 480 , 7″)
- Additional parameter: SO2
- 24 V Power supply PLUS extended temperature range 0-50°C
Compliance With:
- 2008/50/EC, EN 14212, EN 15267, 40 CFR PART 53 SUB B and SUB C
- QAL 1 certified by the TÜV to N° 0000051690
- U.S. EPA approved as compliant with EQNA-0802-149
- ENVEA monitoring solutions are European QAL 1 certified and in compliance with the latest international regulations & standards.
- They are also approved and certified by various laboratories and organizations around the world such as: US EPA, TÜV, GOST, CEN, JQA, CNEMC, JMOE, KTL, CNSA, LCSQA
