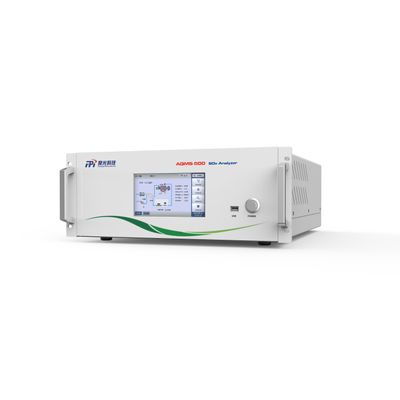

FPI - Model AQMS-500 -Sulfur Dioxide Analyzer (SO2)
FPI AQMS-500 sulfur dioxide (SO2) analyzer applies UV fluorescence technology with the photomultiplier tube (PMT) to measure SO2.
Most popular related searches
SO2 analyzer
air quality monitoring system
SO2
ambient air quality monitoring system
UV fluorescence technology
air quality monitoring
ambient air quality monitoring
sulfur analyzer
ambient air monitoring
SO2 monitoring
- Compliance with US EPA reference method;
- Various outputs include ethernet and RS232;
- User friendly interface with large screen;
- Continuous system diagnosis with alarm;
- Multi-tasking software allows viewing test variables while operating;
- Temperature and pressure compensation;
- Internal data logging with 1 min to 365 day multiple averages;
- Critical orifices provide flow stability;
- Principle: UV Fluorescence
- Standard Range:
- Max:0~20ppm
- Min:0~100ppb (Selectable)
- Zero Noise: ≤0.25ppb (RMS)
- Span Noise: ≤2.5ppb (RMS)
- Display: Digital
- Lower Detectable Limit: 0.5ppb
- Zero Drift: <1ppb/24h
- Span Drift: ±5ppb/24h
- Linearity: <1%F.S.
- Precision: <1%
- Response Time: T90<120s
- Sample Flow Rate: (650±65)sccm
- Data Transmission:
- 2 channel analog (4~20) mA;
- 12 digital input/output;
- 4-way relay output;
- Calibration: Multi-point calibrator
- Communication: RS232/RS485/Ethernet
- Operating Temperature: US EPA Specification 20~30°C, Actual applicable:0~40°C
- Operating Humidity: 0~95%RH(No:condensation)
- Power Requirement:
- 220V AC/50Hz;
- 110V AC/60Hz
- Dimensions and Weight: 178(H)x432(W)x609(D)mm, 22kg
