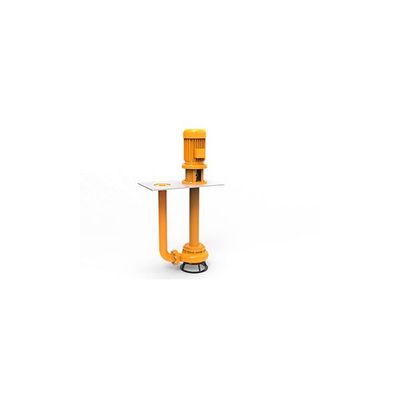

Masdaf - Model MDP -Sump Pumps

Design: MDP Series submerged wastewater pumps can transmit solid and fibrous particles easily by optional impeller and volute casing designs. Their impellers are balanced dynamically according to ISO 1940/1- 6.3. For radial loads, bearing are made at the pump inlet. Extra intermediate bearings are used to make shaft construction more rigid as pipe length increases. The steel column, which protects the shaft from external factors, is protected by mechanical seal on the pump to prevent the liquid reach to bearings and surface of the shaft.
