Sunchlor - Model 25 & 100 -Solar Powered Sodium Hypochlorite Generator
FromPristine Water

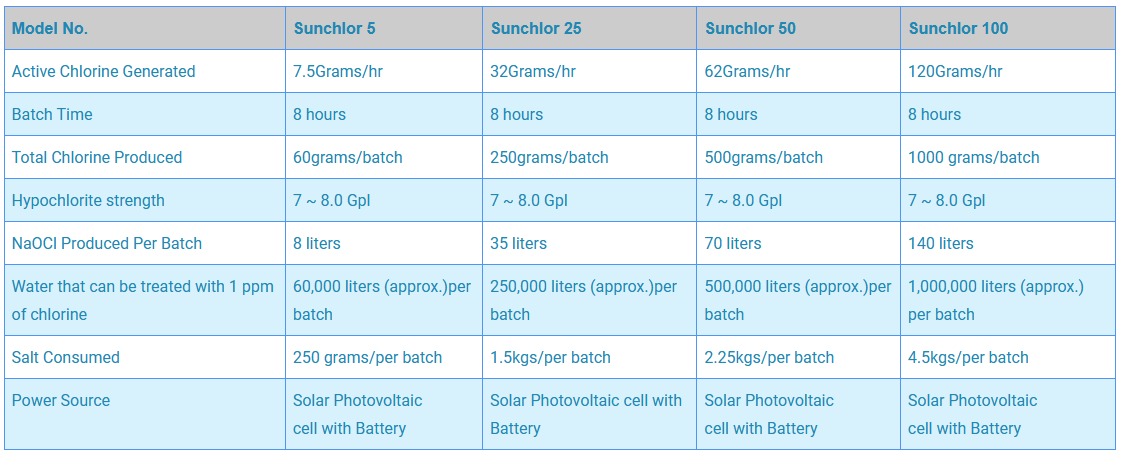

Sunchlor 25 to Sunchlor 100 These systems can produce larger amounts of chlorine to disinfect water from 200,000 litres to 1,000,000 liters. This system comprises of the Solar panel with support frame, the reaction tank, the hypo tank, power supply and dosing pumps. The sodium hypochlorite produced can be injected into the water tank or pipeline where the disinfection is to be carried out.
Most popular related searches
sodium hypochlorite generation
sodium hypochlorite
hypochlorite generation
water treatment plant
drinking water
water tank
water disinfection
titanium electrolyzer
hypochlorite solution
electrochlorination
- It is a batch process system, with Eight hours batch time.
- Titanium Electrolyzer is fixed inside the Reaction tank.
- Reaction tank is made of Fiber Glass with Vinyl Ester Resin
- Electronic timer for accurate time.
- It utilizes state-of- the-art solar technology for battery charging.
- Solar Panel comes complete with mounting stand.
- Control module contains the Power controller, Timer and Battery.
- Small towns and villages for their water treatment facilities to disinfect drinking water.
- Schools, Educational institutions in remote areas for Drinking water.
- Put good clean salt (as indicated on the tank) in the Reaction tank
- Pour water into the tank and mix well.
- Switch on the power supply.
- Power from the storage battery will start the reaction.
- Set the timer at 8 hours.
- The system will start and the chlorine production will begin.
- After the preset time the power supply will stop.
- Now the Sodium Hypochlorite is ready.
- Open the bottom Valve and remove all the sodium hypochlorite into the storage tank.
- The sodium hypochlorite solution can be dosed from the storage tank to the water to be disinfected.
- After production stops, the Solar panel continues to charge the batteries for next use.
- The battery should be charged during the day time and used to produce hypo during night time
