SunLink - Model RMS -Precision-Modular for Roof Mount Systems

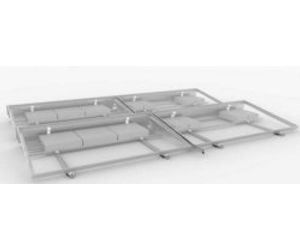

Precision-Modular RMS is the newest addition to SunLink’s quality engineered Precision RMS roof mount racking family — offering Precision RMS quality at a much lower price point. The aluminum system is available for 60 and 72-cell modules and 10 degree tilt. Precision-Modular RMS’ building-block design is assembled, laid out and installed module-by-module to maximize layout flexibility and dramatically reduce costs and delivery times through standard inventory.
One of the system’s most significant advantages is it’s ability to accommodate last-minute, on-roof changes. It is also so lightweight and easy to install that it can be assembled by one person. Plus, integrated wire management trays and clipsreduce on-roof time compared with other wire management strategies and integrated grounding saves additional time and money. SunLink also provides simple attachments used to transform a project module into a fool-proof jig that auto-aligns and auto-spaces all components with proper measurement, improving installation throughput and quality.
The system is fully connected north/south and east/west to better distribute loads, and does not rely on the module frame as a structural element.
Like all SunLink RMS products, Precision-Modular RMS features rubber feet which absorb thermal expansion within the system and prevent any metal from touching the roof — often eliminating the need for slip sheets. The system is also certified by UL labs as having a class A system fire classification rating with all type 1 and 2 solar modules.
Precision-Modular RMS is configured according to latitude and customer preference with project-specific row spacing to optimize project density and/or energy production. Plus, the system’s compact deflector design enables significantly more project density than other roof mount systems.
- Avg. Distributed Weight: 3.5-6.5 PSF (Fully Ballasted, Up to 130 MPH)
- Tilt Angles: 10°
- Roof Applications: BUR; PVC; TPO; SMS; most low slope roofs (7°/12 percent max slope)
- Materials: Aluminum (5052-H32; 6005A-T61), TPV, stainless steel, galvanized steel
- Grounding: Fully integrated grounding ETL listed to 2703
- Fire Rating: Class A
- Module Compatability: All major 60- and 72-cell brands
- Installation Rates: A four-person crew working a 7.5 hour day can install up to 300 modules/day
- Testing: Precision-Modular RMS’ design is based on the results of extensive testing including: boundary layer wind tunnel tests; advanced structural analysis; UL testing; and seismic testing and analysis.
- Warranty: 15 years
- Manufacturing: Can be ARRA compliant.
- Permit Package: Stamped permit packages available for all 50 US states and most international locations.
