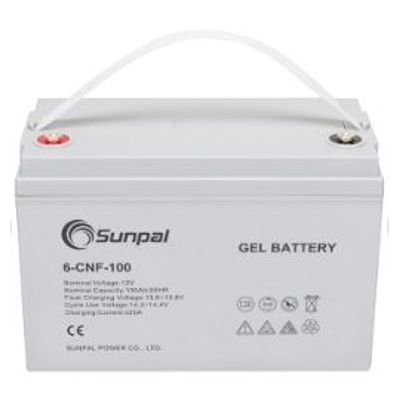

Sunpal12V 100Ah Deep Cycle Lead Acid Battery

SHARE

The 12V 100Ah deep cycle lead acid battery offers robust performance for demanding environments. It is engineered with a nominal capacity of 100Ah, tested at a 20-hour rate with a discharge to 1.75V per cell, ensuring stable operation even under high load demands. The design boasts a service life of 15 years with exceptional cycle longevity, and it supports a wide temperature range from -40°C to 60°C for discharging and -20°C to 50°C for charging, making it suitable for various climatic conditions. The battery's flame-retardant ABS casing provides enhanced safety and durability. Notably, it can deliver a high instantaneous discharge current of 1000A for five seconds, ideal for emergency high-power applications like inverter startups. However, its capacity may significantly drop under extreme temperatures, particularly in cold conditions. For optimal performance, usage within a temperature range of 25°C±5°C is recommended.

Most popular related searches
  • High capacity 100Ah @20hr-rate with multi-rate discharge support
  • Extended design life of 15 years and excellent cycle life
  • Wide operating temperature range for extreme conditions
  • Low self-discharge ideal for long-term storage with minimal maintenance
  • Flame-retardant ABS case ensuring safety and durability
  • High instantaneous discharge current 1000A for 5 sec, perfect for high-power emergency applications
  • Cells Per Unit : 6
  • Voltage Per Unit : 12
  • Capacity : 250Ah@20hr-rate to 1.75V per cell @25°C
  • Weight : Approx. 60.0 Kg (Tolerancet ±1.5%)
  • Internal Resistance : Approx. 5.2 mΩ
  • Terminal : F14(M8)
  • Max. Discharge Current : 2600A (5 sec)
  • Design Life : 15 years (floating charge)
  • Maximum Charging Current :  50.0A
  • Reference Capacity : C3 170.5AHC5 189.5AHC10 217.0AHC20 250.0AH
  • Float Charging Voltage : 13.6 V~13.8 V @ 25°Temperature Compensation: -3mV/C/Cell
  • Cycle Use Voltage : 14.2 V~14.4 V @ 25°Temperature Compensation: -4mV/C/Cell
  • Operating Temperature Range : Discharge: -40°C~60Charge: -20~50Storage: -40C~60
  • Normal Operating Temperature Range : 25°±5
  • Self Discharge : Less than 3% at 25°C per month
  • Container Material : A.B.S. UL94-HB, UL94-VO Optional.
