SunPumps - Model PCA-120-BLS-M2 -Solar Pump Controller
Sun Pumps PCA series BLS pump controllers are high quality, micro-processor controlled sensorless brushless DC motor driver and power converter for a solar powered sensorless brushless DC motor. The main purpose of a PCA-BLS series controller is for motor communation and to maximize the total daily water delivery while providing protection for the pump as well as the power source. Shipping Weight: 6.00 lbs.
One of the features of a pump controller is to boost the current of solar modules in low sunlight conditions while holding the voltage of the solar modules around the maxmimum power point. This allows a pump to start earlier in the morning and stay running longer in the evening.
All PC series controllers include a pump speed control circuit, a remote switch circuit, a sensor-less low water cut-off circuit, an electronic circuit breaker and indicator lights.

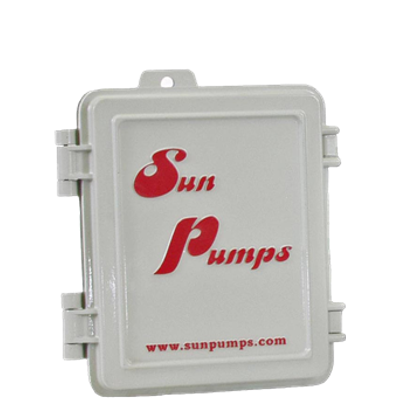

The controller is mounted in a high quality, powder coated, cast aluminum enclosure rated for outdoor use.
- Nominal Voltage Range: 75-120
- Max Open Circuit Voltage: 200
- Minimum Open Circuit Voltage: 90
- Max Load Current: 12.5 Amps
