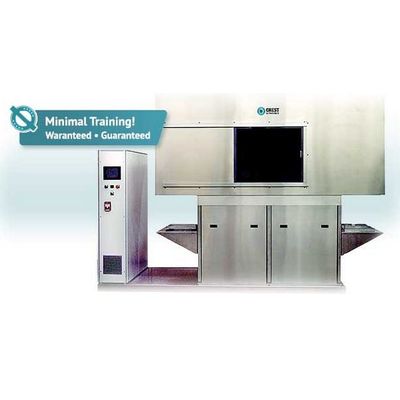

Solvac - Model S4 Series -Super Heated Low Flashpoint Vapor Degreaser
The Solvac Series S4 safely employs all of today’s low-flashpoint solvents such as isopropyl alcohol, acetone, and cyclohexane. The Solvac Series S4 series is a high throughput capacity solution to low-flashpoint solvent precision cleaning applications. A typical process includes immersion in the latest ultrasonic technology with ceramically enhanced transducers that produce unrivaled cleaning with low-flashpoint solvents. It is ideal for removing residues like films, fingerprints, greases, mold releases, oils, etc. Applications can be found in most industrial facilities.
Two standard tank sizes, available for immediate delivery
Standard tank sizes range from 18″L x 12″W x 12″H to 24″L x 20″W x 18″H.
Click on the tabs below to learn more about our Solvac Series S4 Super Heated Solvent Precision Cleaning System:
- TŪV approved and meets all National Fire Protection Standards (NFPA)
- Wash and rinse immersion tanks with patented Crest 40, 58, 132, or 192 kHz ultrasonics
- True SuperheatTM for rapid part drying
- Closed loop hot water heating of solvent and vapor
- High reflux rate
- Recirculation of wash and rinse sump with cartridge filtration
- 100% freeboard ratio to minimize solvent consumption
- Removable panels for easy maintenance access
- Stainless steel condenser and chiller coils to avoid corrosion
- Stainless steel processor tanks with bright annealed finish
- Solvent cool down mode to minimize solvent loss
- Integral CO2 suppression system
- Boiling tank over temperature signal with solvent replacement warning
- Extended freeboard volume
- Boiling tank low-level control
- Vapor level control with reset
- Desiccant water removal
- Baskets
- PLC controlled transport system and upper enclosure
- Automatic downtime cover
- Load/unload conveyors
