ICI-Caldaie - Model ASX -Super-Heated Water Boiler With Reverse Flame
Monobloc reverse flame wet back fire tube superheated water boilers. Manufactured from steel, quality tested according to the prevailing standards and welded with automatic submerged arc welding processes. Suitable for liquid and gaseous fuels. Complete with regulation and safety accessories for automatic operation.
- Design pressure: 5 or 12 bar
- Heat output: 233 ÷ 3488 kW
- Efficiency: > 90.0%
- Efficiency at all costs
Integrated solutions for increased performance and efficiency through flue gas heat recovery fully integrated into the structure of the boiler.
- Advanced management technology
The boiler can be equiped with programmable logic technology that allows complete compatibility with any data acquisition system, also allowing the adjustment of parameters through the display.
- Maximum operating flexibility
Thanks to the very high water content and the very high thermal inertia, the boiler is suitable for any system solution, even in the most difficult operating conditions.
- Configurable to specific requirements

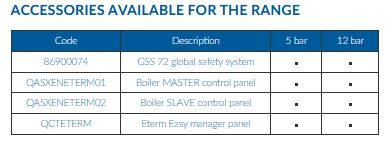

A wide range of optional accessories are available to customize the product to meet specific requirements.
- Maximum security
The generator has been designed in accordance with the strictest international safety regulations in force.
- Assembly and test operations performed in the factory
ONLY FOR VERSIONS WITH GSS SYSTEM
