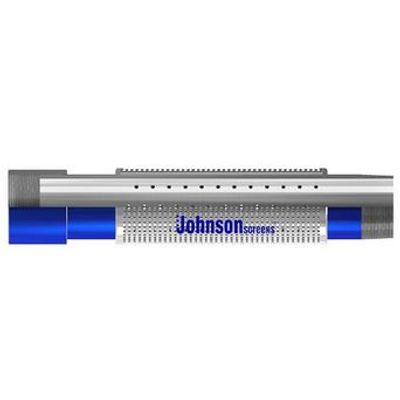

Super Weld™ screen range may be customized within a wide selection of stainless steel and high-nickel alloys wires and within a high number of casing grades. Recommended for cased hole completion with short gravel packing intervals or for open hole completion in well sorted, homogeneous reservoirs.

When bottom hole temperatures exceed 250°F, differential expansion between base pipe and screen jacket may result in loss of sand control. In these cases, a Super Weld ™ HT screen should be used. This patented product has an expansion ring on one end to maintain product integrity under Benefits: Advanced wire wrap screen technology for superior weld strength and slot control Wide selection of wire shapes and sizes to meet the challenges of the most demanding applications Large number of rods to increase tensile strength and achieve a rounder, smoother jacket surface for even filter cake build-up Recessed fitting to protect the screen jacket against run-in-damage Shrouded screen jacket available to protect the screen surface from run-in damage Recommended for: Gravel packing short intervals of cased hole completions Open hole completion of horizontal oil and gas wells in well sorted, homogeneous reservoirs high temperature conditions. Improved pipe perforation with large open area to maximize production of hydrocarbons and reduce entrance velocity. Additional support ribs maximize roundness of the jacket thus providing excellent slot control for better sand retention and prevention of filter cake build-up. Shrink-fitted recessed end-ring components are carefully engineered to give greater jacket protection during final Installation.
