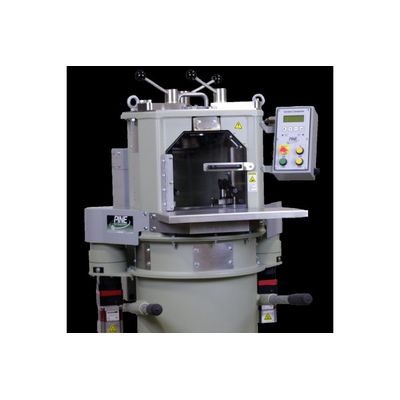

Pine Test Equipment - Model G2 -Superpave Gyratory Compactor

The System

An electromechanical system with integrated controls and angle of gyration measurement drives the G2.  Users define compaction mode, specimen size, number of gyrations, target height, pressure, and angle of gyrations using the control panel.  The G2 compacts material at a constant pressure and angle of gyration.  It gyrates at a fixed speed.  An integrated extruder conveniently expels specimens from molds.  The enclosed compaction chamber keeps the user safe.  And, two USB ports and an Ethernet jack make exporting and printing compaction data easy.

Different Specimen Sizes

The G2 accommodates 150- and 100-mm specimens.  Pine manufactures the standard machine to make 150-mm specimens.  However, the 100-mm Conversion Kit along with a 100-mm Mold Assembly allow for the compaction of 100-mm specimens.

Cooling Specimens in Place

Some asphalt mixes containing rubber expand while cooling if the specimen is not constrained.  Holding the specimen in the machine until it cools addresses this problem.  Pine provides an optional Cooling Door Kit for the G2.  A fan in the door accelerates specimen cooling.  And, a shorter cooling time increases potential machine throughput.

Compaction Modes

Pine’s G2 Superpave Gyratory Compactor runs three compaction modes.  Number of Gyrations applies a user-defined number of gyrations to the specimen.  Compact to Height concludes compaction when a user-defined height is reached.  Locking Points stops compaction when the height change between subsequent gyrations is equal to or less than a user-specified height change.

A User Favorite

Customers love the G2 because it is simple to operate, the machine functions consistently, G2’s experience few problems, and Pine supports it well.

Optional Gyratory Shear

Outfit your Pine G2 Superpave Gyratory compactor to measure and record gyratory shear as an optional feature.

Power Requirements:

• AFG2A: 115 VAC(±10%), 12 Amp, 50/60 Hz, 1 ph
• AFG2B: 208 VAC(±10%), 6 Amp, 50/60 Hz, 1 ph
• AFG2C: 230 VAC(±10%), 6 Amp, 50/60 Hz, 1 ph
• AFG2D: 100 VAC(±10%), 12 Amp, 50/60 Hz, 1 ph

Dimensions:

• 875 mm wide x 900 mm deep x 1375 mm high (~34.5 inch x ~35.5 inch x ~54 inch)

Weight:

• Approximately 400 kg (880 lb)
• Note: There are three eye-bolts mounted on the top of the machine with which to hoist it.

Applied Pressure:

• 200 kPa – 1,000 kPa
• ±60 kPa gyration 0-5; ±10 kPa gyrations >6
• Note: Users set the desired pressure via the control panel.

Angle of Gyration:

• 0.00° – 1.50° (0.00 – 26.18 mrad)
• Selectable to internal or external angle
• Note: Users set the desired angle of gyration via the control panel.

Speed of Gyration:

• 30 gyrations per minute
• Note: The speed of gyration is fixed.

System:

• Electromechanical

Number of Gyrations:

• 0 – 999 gyrations

Minimum Specimen Height:

• 0.0 mm

External Mold Dimensions:

• 215.9 mm OD x 279.4 mm tall

Internal Mold Dimensions (Space Available for Loose Asphalt):

• 150.0 mm +0.0/-0.1 mm ID x 252 mm tall
• 100.0 mm +0.0/-0.1 mm ID x 252 mm tall
• 101.6 mm +0.0/-0.1 mm (4”) ID x 252 mm tall
• Note: Molds meet the requirements of AASHTO T312 and ASTM D6925.

Mold Weight (empty):

• 13.1 kg (29.0 lbs.)

Modes of Operation:

• Compact to number of gyrations, specified height, or locking point.
• Compact at a specified internal or external angle.
• Note: Users set the desired mode of operation.

Data Acquisition:

• Gyration number
• Specimen height (mm)
• Angle of gyration (degrees)
• Consolidation pressure (kPa)
• Optional – Gyratory tilting moment (N-m)

Data Output Options:

• 2 USB data ports
• Network compatible
• Printer (optional)
