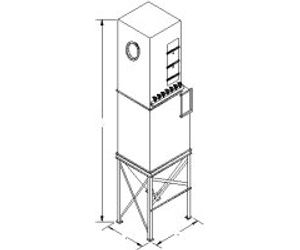

Scientific Dust Collectors - Model SPJ-T -Supersonic Pulse Jet Top Removal Baghouse Dust Collectors
Scientific Dust Collectors` Supersonic Pulse Jet Top Removal (SPJ-T) Collector is designed with a full walk-in plenum for easy bag access from the clean side. It utilizes the patented supersonic nozzle cleaning system as well as a high-side inlet so that the heavier dust falls out of the air stream. These features allow the collector to operate at higher air-to-cloth ratios, lower pressure drops, and provide longer filter life. The SPJ Series is a heavy duty reverse pulse jet dust collector that operates continuously without requiring the process to be shut down for cleaning. The walk-in feature on the SPJ-T Series allows bag changeout from the clean side while not being exposed to the elements.
Our high side baffled inlet with dropout section slows to less than 3000 FPM, which allows the large particles to simply fall out of the airstream into the hopper. Our bag spacing of three (3) inches between bags is the widest spacing in the industry. This reduces reentrainment of the dust. Our nozzle based cleaning system eliminates the venturi at the top of the bag/cage. This allows us to get over 300% more cleaning air into the bag than other generic baghouses.We gaurantee a stabilized pressure drop in our baghouse to be lower than 3.5"WC at full rated airflow.
- 12 gauge hot rolled steel housing, reinforced to withstand ± 20 IWC
- Structure designed to withstand 100 MPH winds + Zone 3 seismic loads
- Patented cleaning system with solid state timer pre-wired in NEMA 4 enclosure (110 V)
- 60° hopper with square discharge, flanged and pre-drilled for auxiliary equipment
- Compressed air manifold mounted with pipe couplings on both ends for easy connection of air supply
- Hopper discharge clearance of 42”, sized for slide gate and 55 gallon drum adapter
- Flanged inlet and pre-drilled flanged outlet
- Removable 20” x 20” hopper access panel (for airlock)
- One full set of filter bags and wire cages with mounting hardware
- Zinc oxide primer on the interior and exterior, and an exterior finish of industrial enamel (color is tan or gray)
- One differential pressure gauge with dust trap and connecting hardware
