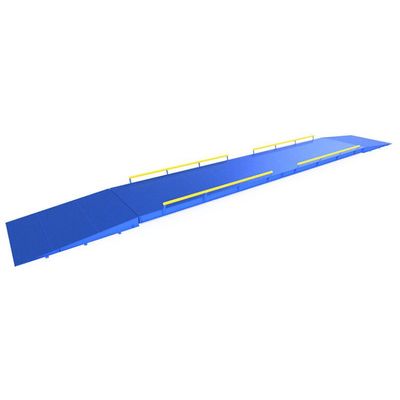

Libra - Surface or Pit Mount Weighbridges
The Highweigh weighbridge has proven itself as an industry leading weighing system in over 30 years of production and service since the base design. With over 2,000 units in operation worldwide, this is the most durable weighbridge on the market today. The HighWeigh weighbridge is a heavy duty beam design, fabricated to the highest standards under strict quality control and factory testing. All joints are fully welded, sealing the internal structure from outside elements, while the external structure is protected with a 3 coat epoxy system. Designed for use as both a static and a portable weigh station when incorporated with our steel sub bases. The HighWeigh can be installed both Pit mounted and Surface mounted.
Available in a multitude of sizes ranging from:
8m x 3m through to 24m x 4m and capacities from 20 tonnes through to 200 tonnes.
Bespoke sizes and capacities are available upon request. SOLAS Ready. ATEX VERSION AVAILABLE.
Anti-Slip modular deck
10mm thick skid resistant Deck Plate enables heavy use eliminating wear problems. A Special Interlocking System positions the deck modules exactly. The decks are fully sealed above and beneath to prevent ingress and have removable plates for easy access to the load cells.
Protected Load Cells
All load cell-bearing plates have triple pass welding to ensure maximum strength, the load cells are mounted under access covers to allow ease of inspection with all load cell cables protected in steel.
- Corrosion Resistant Epoxy Coating
- Hermetically Sealed Junction Box
- Heavy Duty Ball Bearing Load Cells
- Dust and waterproof wiring and connections
- CE Approved BS EN 1090 Structural Steel
