Singer Valve - Model 106/206-RPS-L&H -Surge Anticipating Relief Valve

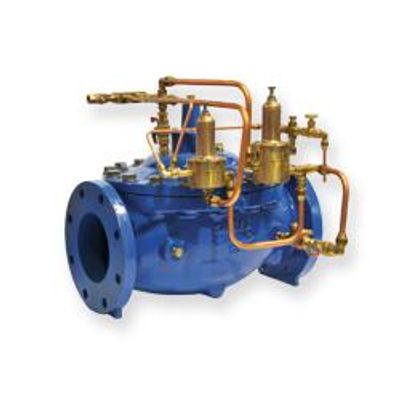

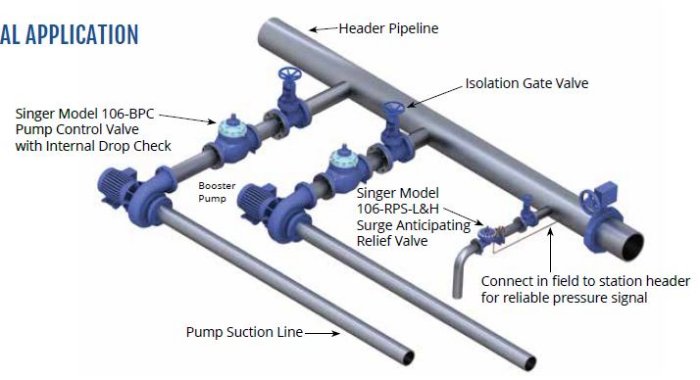

The 106-RPS-L&H and 206-RPS-L&H anticipating surge relief valves are based on the 106-PG or 206-PG main valve. The valve is mounted in a tee, downstream of the pump check valve(s). It is designed to anticipate surges to avoid the severe water hammer often associated with power failure surges.
The RPS-L&H pilot system is comprised of two pilots, the 81-RP and the 82-PR. Both pilots sense pressure through a connection to the header pipe. The 81-RP high pressure pilot opens the valve to relieve excess pressure. The model 82-PR low pressure pilot opens quickly on below normal pressures prior to the return of a surge wave, initiating the opening of the main valve in anticipation of the high pressure wave’s arrival.
- Protects against power failure surges or pressure waves caused by velocity changes
- Quick opening relief
- Easily adjustable pressure setting
- No electrical services required

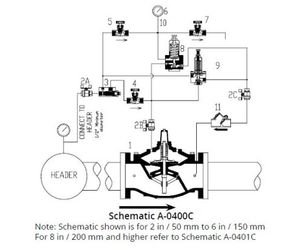

- Main Valve - 106-PG or 206-PG
- Isolation Valve (2A, 2B, 2C), standard all sizes
- Strainer - 40 mesh screen - standard 4 in / 100 mm and larger
- Closing Speed Control - model 852-B
- Test Needle Valve - normal position fully open
- Pressure Gauge - 1/4 in / 6.35 mm, NPT – By Others
- Test Needle Valve - normal position fully closed
- Model 82-PR - Low Surge pilot
- Specify for 7 to 50 / 0.48 to 3.5 bar, 45 to 200 psi /3.1 to 13.8 bar or 100 to 300 psi / 6.9 to 20.7 bar
- Model 81-RP - High Surge Pressure pilot specify for 5 to 50 psi / 0.35 to 3.5 bar, 10 to 80 psi / 0.7 to 5.5 bar, 100 to 300 psi / 6.9 to 20.7 bar.
- Pipe Plug for Gauge Connection
- Swing Check Valve - 1/2 in / 15 mm
Standard materials for pilot system components are:
- ASTM B-62 bronze or ASTM B-16 brass
- AISI 303 / 316 stainless steel trim
