Fucoli - Somepal, Fundição de Ferro S.A

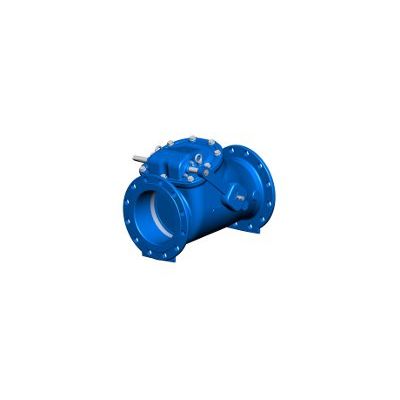

Supra - Model PN 10/16 -Swing Check Valve with Lever and Counterweight

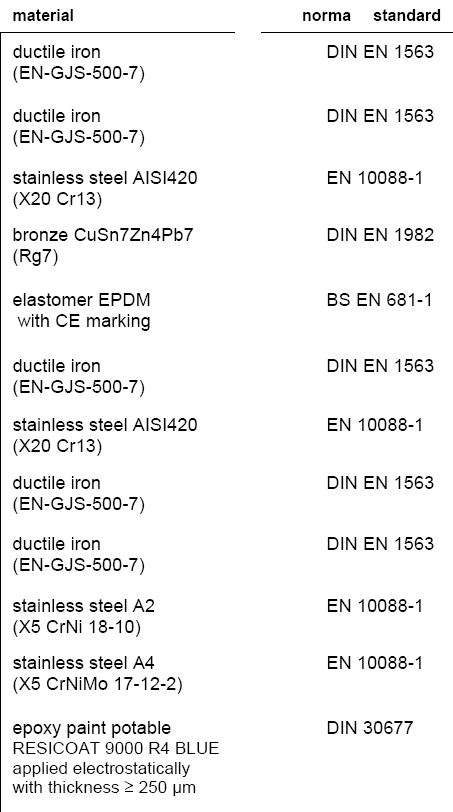

Prevent back flow. Metal/metal sealing.The water flow sense should agree with the sense of the marked body arrow. Have lifting eye starting from DN 200. The valve could be installed on the horizontal or on vertical position. Have the possibility to install the lever on the left or on the right of the valve. Shaft and seats-AISI 304 or AISI316 Land others. By-pass. Valves for working at temperatures over 70°C.
Most popular related searches
- Prepared to be mounted horizontally or vertically, and with the possibility of mounting the lever to the left or right side, facilitating the application near walls or other obstacles.
- Compact design requires little space for assembly.
- Easy maintenance.
- In case of the components wear these can be easily replaced, the removal thereof can be done without removing the valve from the pipeline , through the loosening of the screws from the system that removes the seal, shutter arm and shaft gland.
- Full complete passage without obstacles, avoiding head loss
- Reduced force in opening and closing.
- Effect of cavitation almost null, due to geometric configuration of the valve.
- Reliability and stability of the obturator, with the arm with double support
- Possibility of applying plug to check and clean.
