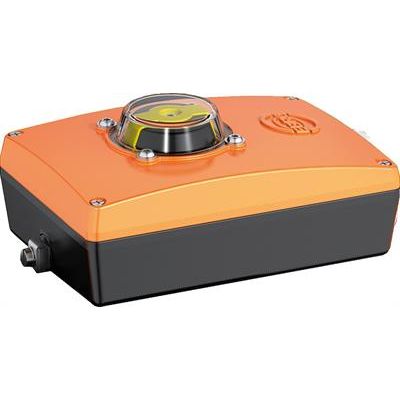

EBRO ARMATUREN - Switch Box Unit SBU
Automated valves play a central role in process technology: they regulate flow rates, lock product flows and release pipes. The challenge is the fact that the valve and actuator perfectly harmonize with each other. The automation technology simplifies complex systems, ensures a lower error rate and thus speeds up work.Most popular related searches
proximity switch
automated valve
solenoid valve
valve actuator
flow regulation
EN standard
flow regulator
actuated valve
Body: Aluminium (powder coated)
Sealing: NBR (Silicone on request)
Connection: Colour coded spring type terminals 2,5mm²
Protection class: IP 65, IP 67 and IP 68 to EN 60529
Temperature range: Standard -20°C to +70°C, Special design on request
Screws: Stainless steel
Sensors: 2 or 3 microswitches, 2 or 3 V3 proximity switches, 2 proximity switches M12 or M8 Adjustment
Adjustment range: max. three control switches, adjustable within 240°
Solenoid valve: max. 2 inductors
