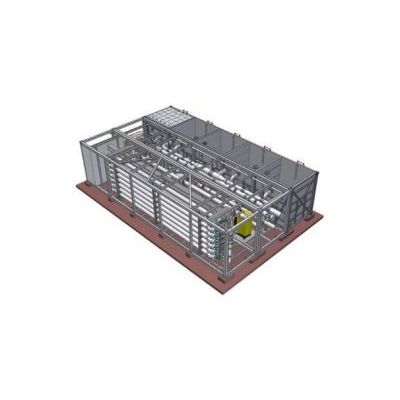

IDE Progreen - Model SW-M 2000 -SWRO Chemical-Free Desalination Plant 2000 m3 day (367 gpm)
FromIDE Technologies
Patented Direct Osmosis Cleaning (DOC) system. Energy-efficient high pressure pumps with frequency converter (VFD). State-of-the-art, highly efficient energy recovery system. End-to-end modular PLC with 15` touch screen. Remote performance monitoring.
Most popular related searches
high-pressure pump
SWRO chemical
SCADA system
reverse osmosis membrane
desalination plant
drinking water
FRP membrane pressure vessel
SWRO desalination plant
membrane pressure vessel
remote monitoring
- Integrated SCADA system
- Configuration: Containerized or skid mounted
- Redundancy options for high availability
- Second pass RO for industrial applications
- TDS: 35,000-41,000 ppm
- TSS: <15 ppm
- Operating temperature:15-32ºC (59-90ºF)
- Recovery rate: 45%
- Energy consumption (T - 27ºC): 3.0-3.2 kWh/m3
- Electrical supply
- EU: 380-420V 50Hz
- NA: 440-480V 60Hz
- Piping and accessories (LP): 316 / Polypropylene
- Piping and accessories (HP): SMO
- High pressure pump: Super Duplex
- Pressure vessels: FRP
- RO membranes: Polyamide (8”)
- Skid: Epoxy painted carbon steel
