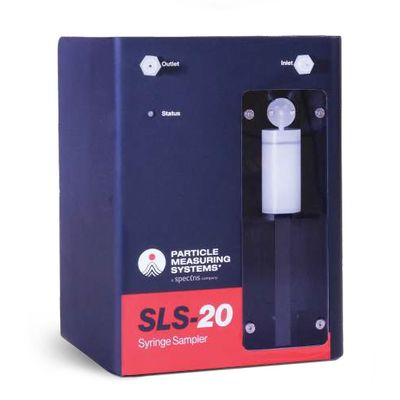

PMS - Model SLS-20 -Syringe Liquid Particle Sampler
The SLS-20 Syringe Liquid Sampler enables Chem 20™ or Chem 20-HI particle counters to operate in batch sampling applications. It is ideal for precise, small-volume sampling. The system consists of an SLS-20 for either corrosive or non-corrosive liquids, all connections necessary to interface with a compatible Chem 20 or Chem 20-HI particle counter, and optional software.
Most popular related searches
liquid particle counter
particle sampling
particle counter
liquid sampling
corrosive liquid
filter monitoring
particle counter software
sample temperature
contamination monitoring
contaminant monitoring
Reduce your equipment inventory with this versatile family of instruments. The SLS Family help you to enable faster project turnaround and higher productivity by identifying even the smallest amount of contamination. It also reduces wastes through the small-volume sampling.
Automation & Software Integration
- Controlled via SamplerSight™ software for menu-driven data collection, trending, and reporting.
- Supports repeatable recipes and optional password security for consistent operation
- RS-232 communication for data transfer.
Precision Syringe Sampling
- Uses a syringe pump for accurate volume measurement and controlled flow rates.
- Supports multiple syringe sizes (1 ml, 5 ml, 10 ml, 25 ml) for flexibility in sample volume.
Various Models for Variety of Applications
- For 20 nm Batch Sampling: System consists of an SLS-20 for corrosive or non-corrosive liquids. Includes all connections necessary to interface with a compatible Chem 20 or Chem 20-HI particle counter, and optional software.
- For Pharmaceutical Injectable Testing: Liquid Particle Counter for USP 788; sizes & counts suspended particles in a wide range of liquids, including parenterals.
- For Variable Sizing Sensitivity: The system consists of a selectable syringe for either corrosive or non-corrosive liquids and a selectable particle counter for different sizing sensitivities.
For batch sampling applications with Chem 20™ and Chem 20-HI particle counters.
- 20 nm sensitivity provides unmatched level of process, chemical and filter monitoring
- Fluoropolymer syringe standard for use with HF
- Minimal chemical volume used
- Fully automated system
- Menu-driven data collection
- Extremely accurate measurements
- Compatible with corrosive and non-corrosive liquids
- With SamplerSight so ware, includes data generation into pre-formatted report types and spreadsheets
- Internal leak detection
- Repeatable recipes for consistent sampling parameters
- So ware for data collection and trending
- Optional password security
- Small volume chemical quality assurance
- Parts cleanliness testing
- Laboratory water sampling
- Industries: semiconductor, pharmaceutical, data storage, medical, aerospace, automotive
- Sampling chemical out of finished product packaging
- Sampling out of wet process tanks for process and filter monitoring
- Syringe size: 50 ml (standard), 25 ml (optional)
- Sampling mode: Vacuum, Batch
- Wetted surface materials: Kel-F®, PFA, PTFE, Kalrez®
- Sample volume: Adjustable with so ware interface
- Sample temperature: 59 – 104 °F (15 – 40 °C)
- Dimensions: (l x w x h) 10.0 x 9.0 x 12.3 in (25.4 x 22.9 x 31.2 cm), not including particle counter
- Weight: 14 lb (6.4 kg), not including particle counter
- Power: 100 – 240 V, 50 – 60 Hz
- Environment
- Temperature: 50 – 86 °F (10 – 30 °C)
- Humidity: Non-condensing
