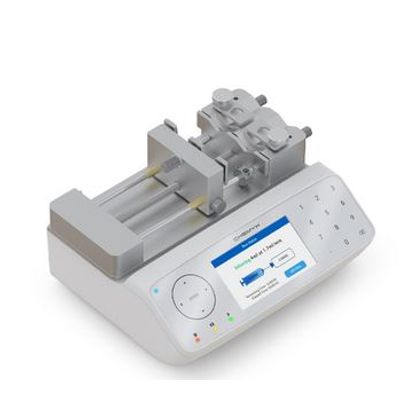

Fusion - Model 200X -Syringe Pump
The Fusion 200X is a programmable, dual-channel infusion and withdrawal modular syringe pump. This advanced precision syringe pump features two syringes to infuse/withdraw simultaneously at pulseless, reproducible rates; a programmable multi-step mode that allows users to program complex multi-step flow rates; computer control with Lab view and other programs; an add-on 4-syringe push and pull rack for four large syringes; an add-on 11-syringe push and pull rack to increase the syringe number up to eleven. The Fusion 200X double syringe pump has a full-glass touch screen that is chemical resistant and easy to clean for lab environments of all types. This automated syringe pump is designed for precision dispensing/dilution, organ/tissue perfusion, and microfluidics, electrospinning, aerosols, pharmaceuticals, and bioscience research.
- Holds syringes from 0.5µL to 60mL
- Modular Infuse/Withdraw
- Rates from 0.0001 µL/min to 84.7 mL/min
- Control via touchscreen, USB, RS232, TTL
- Free multistep programmable mode included
- Glass Touch Screen
- 11-channel Syringe Rack & 4-channel Syringe Rack
- 2-Year Limited* Warranty
- Available Accessories
- Mode: Infuse/Withdraw
- Accuracy: ± < 0.35%
- Reproducibility: ± < 0.2%
- Syringe Size (Min/Max): 0.5µL to 60mL
- Syringe Type: Plastic, Glass and Stainless Steel Syringe Type Chart
- Syringe Flow Rates: See Syringe Library for Min & Max Flow Rates
- Minimum Flow Rate: 0.0001 µL/min (with 0.5µL syringe)
- Maximum Flow Rate: 85 mL/min(with 50mL syringe)
- Linear Force: 65lb (29.4kg)
- Display: 4.3 inch LCD Touch Screen
- Connectivity: USB-B, RS232 and TTL Ports
- System Dimensions: 9.5 x 8.2 x 4.9 inches (24 x 20.8 x 12.4 cm)
- Power: 110/220 VAC automatically switches between 110V to 220V, 30 W
- Weight: 7lbs (3.1kg)
- Motor Drive: 1.8° MicroStepper Motor
- Step Resolution: 0.0528 µm/step
- Operating Temperature: 4°C to 40°C (40°F to 104°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Multi Steps: Program steps up to 99 step / loop steps up to 99 loop
- Parameter Setting: Option to choose time or rate
- Modular Capability: Option to add a 11 syringe rack
- Humidity: 20% to 80% RH, non-condensing
- Installation Category: II
- Regulatory Compliance: CE, RoHS, REACH, ETL
The Fusion 200-X two-channel syringe pumps infuse and withdraw solutions at pulseless, reproducible flow rates via a state-of-the-art micro stepper motor. With this dual syringe pump, you can easily and effortlessly deliver accurate and precise amounts of fluids for a multitude of applications like microfluidics dosing, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.
Chemyx dual syringe pumps are precision machined with metal components for a level of accuracy needed for micro flow applications and for both chemical resistance and mechanical wear. Chemyx high-precision double syringe pumps last for years with an equipment value that is hard to match.
- Machined metal design
- Chemical-resistant polypropylene coated screen
- 2-year limited warranty
Intuitive, user-friendly software on this dual syringe pump lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available through USB, TTL, and RS232 communication connections. Fusion two-channel syringe pumps also are supported by LabVIEW / MATLAB drivers and are automation ready for coding software like C++, C#, and Objective-C via simple ASCII commands.
Modular 11 Syringe Rack Attachments
The Fusion Plus modular dual syringe pump is ideal for laboratories that have changing experimental requirements. Infuse and withdrawal functions along with an 11-Syringe Holder Rack option allows the Fusion Plus dual syringe pump to adapt to a wide variety of changing lab applications.
