Cytiva Whatman - Model Mini-UniPrep G2 -Syringeless Filter
Mini-UniPrep G2 is an all-in-one syringeless filter with a borosilicate glass chamber. It replaces syringe filters for autosampler-supported UHPLC/HPLC sample preparation with easier handling and fewer consumable components.
- Features an integrated autosampler vial, plunger with attached filter membrane, and septum/cap
- Borosilicate glass vials eliminate plastic-based leachables that can originate from polypropylene vials
- Designed to hold up to 0.5 mL of unfiltered sample that can then be loaded directly into an autosampler
- Easy to see when a sample has been filtered
- Wide range of membranes with 0.2 and 0.45 µm pore sizes to meet specific requirements
- Also available in amber glass for light-sensitive samples
A variety of filter membrane media are available to meet your needs. Browse the Whatman line to find the right filter and compressor for your application.
Mini-UniPrep Syringeless Filters combine a membrane filter, autosampler vial, septum, and plunger into a single device to provide efficient sample filtration for Ultra High Performance Liquid Chromatography (UHPLC)/High Performance Liquid Chromatography (HPLC) analysis.

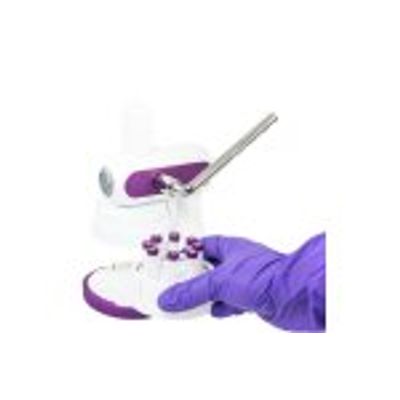

Mini-UniPrep G2 Autosampler VialsOnce compressed, Mini-Uniprep G2 can be placed into any autosampler that accepts a 12 mm × 32 autosampler vial for injection into your instrument. Alternatively, the septum can be pierced with a needle and the sample drawn off for manual injection into an analyzer.
Simplifying UHPLC/HPLC sample preparation minimizes instrument downtime resulting from use of unfiltered samples.
Minimizes LeachablesExcessive leachables contamination from plastic vials can destabilize organic formulations and skew results. Mini-UniPrep G2 from Cytiva Healthcare’s Life Sciences business features a borosilicate glass chamber, so sample contact with plastic leachables is minimized.
- Parameter : Mini-UniPrep G2 Syringeless Filters, std cap, translucent housing, 0.45 µm Glass Microfiber (100 pcs)
- Application : Routine UHPLC/HPLC analysis. Composite assays. Content uniformity testing. Protein precipitation. Solubility testing. Dissolution testing. Sample filtration. Use with any compound that requires protection from light, such as catecholamines or vitamins.
- Housing : Borosilicate glass and Polypropylene (PP)
- Cap : Standard
- Capacity Max. : Chamber (Unfiltered Sample): 500 μl; Inner Storage Vial (Filtered Sample) : 330 μl; Recommended Minimum Filtering Volume: 220 μl placed in the Chamber to obtain 50 μl in Inner Storage Vial ml
- Nominal Force Needed to Compress : Approximately 25 lbs (11.3 Kg)
- Material : Chamber: Borosilicate Glass Plunger Outer Housing: Polypropylene Plunger Inner Storage Vial: Borosilicate Glass Filter media: As Specified Septa: Silicone with PTFE Liner Cap: Polypropylene
- Dimensions : Equivalent in size to 12 x 32 mm vials. Will fit any autosampler that accommodates standard 12 mm x 32mm profile vials (Needle height of the autosampler may need adjusting)
