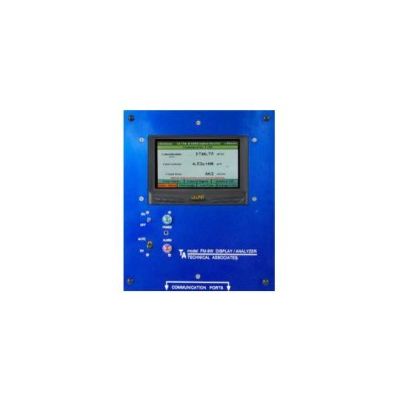

TA - Model FM-9HUB Serires -Computer HUB for Multi-Channel Radiation Detector Systems
The FM-9HUB is the computing engine that powers many of TA’s multi-channel radiation in air, and water monitors as well as area, vehicular and personnel monitors and systems. Like all of the FM-9HUB series, these are continuous duty, rugged wall or rack mounted systems. Electronics include computer with COLOR LCD Monitor. Electronics are plug-in modules allowing quick change or addition of function as needed; allowing rapid repair by substitution of modules in the field. The modular system is covered by T/A’s unique modular warranty, in addition to the full one-year warranty covering all T/A products. Various systems are based on the FM-9HUB. All cabling, connectors, and software in place ready to operate. The standard unit is operated from 115 V single phase, 60 Hz; 220V optional, 50 or 60 Hz.
- Computing engine for multiple instruments and systems.
- Powers channels for multiple instruments: air, water, area, vehicle, and personnel.
- Continuous, real-time, rugged duty.
- Includes computer and color monitor.
- Easy integration to facility mainframe if desired.
- Calibration: Follow on-screen instructions for user-assisted automatic calibration.
- Display Mode:
- Model FM-9HUB features an advanced Processor Computer with a Color LCD Monitor.
- Direct readout in desired radiation units Bq/l or other units such as KBq or Curies, etc.
- High Voltage Supply: Separately variable from 0 to 2000. Extremely stable HV.
- LCD Color Monitor: Monitor shows both real time concentration and accumulated dose for all channels.
- Data is shown both graphically and numerically.
- Accuracy: +/- 10% except for resolution loss and statistical variation.
- Alarms: Alarms are pre-settable by user to any trigger level.
- Low level Alarm: Automatic Reset
- High Level Alarm: High level alarm remains activated until RESET button is pushed.
- Visual Alarm: On-screen alarms and warnings. Red-high level, Amber-Low count for each channel
- Audio Alarm: 1000 Hz, greater than 80db.
- Outputs:
- Logic Level Signals
- Contact Closure or Opening
- Ethernet LAN Connection
- USB ports
Standard Built-In Modules Series – All Solid State:
- 1 ea: Digital Acquisition Board
- 1 ea: MGA-5202 with amplifiers including fully adjustable single channel analyzer w/ independent high voltage power supply for scintillation detector.
- 1 ea: MV-5-12 Power Supply Module – 5 volt and 12 volt. Once the high voltage levels are set by the technician, they do not change.
- 1 ea: MAL-Built-in Alarm Module
Electronic System Description:
- CPU with data acquisition
- High Resolution, LCD Color Monitor Display
- Use plug-in Mouse
- Graphic Printer for hard copy on some models
- USB HUB (4 ports)
- Use plug-in Keyboard
- 2 SD Cards, 2 gigabyte per card
- Non-volatile 1 year data storage. Data is stored every 2 minutes- all year
- Specialized Overhoff Overview Radiation Monitor software custom tuned and designed for the FM-9HUB
- Ethernet- LAN and USB ports
