TA - Model MEDA-SP -RAD Safety Water Monitor

• Quick check of questionable water
• Two separate detectors
• Submersible Gamma Detector
• T-1190 Alpha, Beta, Gamma Detector
• Lightweight – fits in briefcase

• Roadside Chemical Spill
• Industrial Accident
• Terrorist Water Poisoning
• Dumping of Medical/Industrial Waste

• Use MEDA-SP Anywhere

• Gamma emitters, submersible sensor probes for reservoir, stream or sump.
• Alpha & Beta emitters in water samples
• Quick determination of water contamination
• Easy detection of surface contamination-Alpha, Beta, Gamma; hands, boots, clothing and equipment
• Identify personnel needing decontamination
• Search out stored radioactive materials or dirty bombs using Gamma probe

Arrive at location of accident or attack

• Submerge Gamma sensor into reservoir, stream or sump.
• Increasing count rate indicates contamination by Gamma emitters.

Use PAN-AL (disposable Planchet)

• Place sample of suspect water in evaporator (EVAP-SP) for one minute
• Place sample under built-in pancake detector on bottom of ratemeter
• Increased count rate indicates contamination with Alpha or Beta emitters

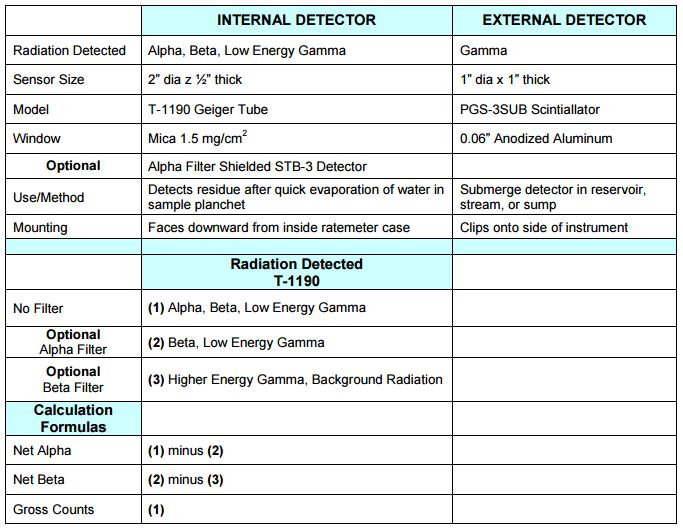

To Separate Alphas, Betas, and Gammas

• Built-in sliding beta filter is standard
• Alpha filter is optional

If count rate exceeds 2 times background, water is not safe.

• Use built-in pancake GM detector on bottom of ratemeter to check people, clothing and objects for surface contamination.
• If count rate exceeds 2 times background, the person should take off the contaminated clothing.
• If count rate continues to exceed 2 times the background, hose them down and measure again.
• Gamma probe count rate will increase as you approach a cache of radioactive materials. Knowing this you can search a car or check-out suspicious objects.

• Meter: Rugged, recessed 2-1/2`` meter.
• Ranges: 4 linear for each detector:
• 0-500; 5,000; 50,000; 500,000 cpm for external
• 0-0.15; 1.5; 15; 150 mR/hr. for internal detector.
• Other scales and overlays available: Sieverts, etc.
• Range Switch Positions: Off; Battery Test; X1; X10; X100; X1,000.
• Detector Switch (Toggle): Internal (pancake), External (scintillator) PGS-3SUB
• Time Constant Switch: Fast, Slow (approx. 2 & 11 sec.)
• Detectors:
• 2`` O.D. Pancake Geiger for internal Alpha/beta,
• Submersible, high sensitivity Gamma scintillation probe 1"x1". Nal (Tl) crystal standard.
• 2"x2" crystal optional.
• Calibration: Single master Cal Pot for each detector, plus individual Cal Pot for each scale. Pots adjust from outside case.
• Power: 9V transistor battery (Eveready E1220 or equivalent).
• Battery life - 100 hrs with normal operation.
• Dimensions: 3`` (7.6cm) wide x 5-1/4`` (13.3cm) long x2-1/4`` (6cm) deep.
• Total Weight: 2.5 lbs. (including probe and battery)
• Shipping Weight: 4.4 lbs.

Accessories Include:

• EVAP-SP: Sample evaporator with vehicle adaptor or battery.
• PAN-AL: Disposable aluminum Planchets for sample evaporation.

Options:

• PAN-SP: Re-usable planchets.
• PGS-3LSUB: 2"x2" crystal probe
• STB-3: Shielded pancake tube detector for enhanced Alpha beta sensitivity
• BAT-EVAP: Battery for evaporation process
