TA - Model Minitect-SC - Suitcase & Minitect-BP - Backpack -Chemical, Biological and Radiation Sensors Robust Water Safety Monitor
Measures down to military Drinking Water Standards and Below for some waterborn hazards. Model Minitect combines several detection goals into one monitor. The Minitect continuously monitors radio nuclides using both ion exchange resin beads and particulate filter. Chlorine, TOC, and Nitrogen are monitored with detectors integrated within the Minitect system. Additional monitoring is available and will be tailored to specific needs on request.
- Simplify your testing – all in one
- System
- 7 major chemical tests provided
- From 4 to 10 radiation tests provided
- Large number of microbes
- Dectected
- The worlds only alpha-beta in water
- Sensors
- Real time, in-line, continuous
- True fail safe design with alarm
- Detects alphas, betas and gammas,
- Tritium. Radon, radium uranium
- Detects chlorine, nitrogen, toc
- No reagents required
- Easy installation, calibration
- Monitor community drinking, wasterwater, both in ground and surface waters, against radioactive and other contaminants.
- Terrorist contamination
- Industrial contaminates: laboratory, power plant, agricultural
- Industrial accident/illegal dumping
- Residual treatment additives
Water sources are vulnerable to: accidental or knowing contamination by individuals, groups, industry and medical labs/hospitals, terrorist, naturally occurring radioactive materials (NORM) and residual treatment additives. Water districts and wastewater facilities have not had the option of a robust real-time monitor for radio nuclides and other contaminates. To date, no real time monitor has been available for radio nuclides and only individual monitors for specific chemical and biological contaminants have been available. This lack of a comprehensive, robust detection monitor has seriously hampered the development of an Online Contaminant Monitoring System (OSMS), required to protect the nation`s water.
System flow rate
- Standard: 100 to 1,000 ml/minute
- Optional: Wide range of flow rates available
- Sample temperature standard: Up to 80° F liquid. (Optional to 115° F)
- Ambient temperature: 35 - 100 ° F
- Optional: Cooler model Cool-33 is used in case of higher sample or ambient temperatures.

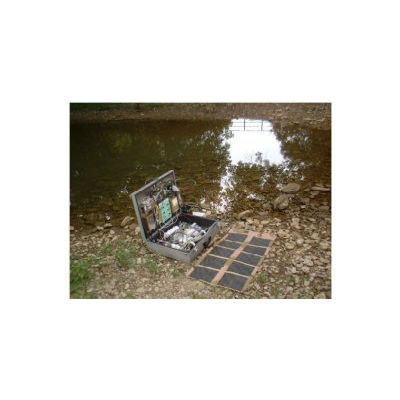

Minitect – SC - Suitcase
- Size and Weight: Minimum configuration *
- Dimensions: 20`` wide X 26`` deep X 6.6`‘ high, plus laptop pc
- Hand Carry Weight: 40 lbs
- Shipping weight: 60 lbs

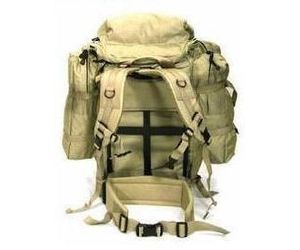

Minitect - BP- Backpack System
- Size and Weight: Minimum configuration *
- Dimensions: 2 each 12`` wide X 24`` deep X 8`` high fits in optional backpack plus laptop pc
- System Weight: Includes solar panels and batteries, but excluding weight of the 2 Backpacks
- 25 lbs per backpack
- Shipping weight: 55 lbs
* Minimum configuration includes working system but only the alpha beta and gamma radiation sensors. Addition of Chem and Bio sensors will add to size and weight.
